PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V

All Products
Shoe Making Machine (6)
Gumboots Making Machine (9)
Shoe Injection Machine (6)
Slipper Making Machine (19)
Blowing Slipper Machine (6)
EVA Shoes Injection Machine (9)
EVA Shoe Making Machine (7)
Plastic Shoe Making Machine (6)
Sports Shoe Making Machine (6)
PVC Shoe Making Machine (6)
Rubber Sole Making Machine (7)
Shoe Sole Making Machine (34)
Plastic Shoe Mold (7)
Sandals Making Machine (6)
I'm Online Chat Now
Certification
China Dongguan Kingtour Technology Co., Ltd. certification

PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V

PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V

Large Image :  PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V Get Best Price

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: KINGTOUR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $15,900-25,900
Packaging Details: Professional safety export package
Delivery Time: 5-35 Days
Payment Terms: TT,LC,DP
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Name: Shoes Injection Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 130-180 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 18500 Dimension(l*w*h): 4960*3960*2360mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Product Name: Rotary PCU Shoes Injection Machine From Shoe Making Machinery Function: To Make PCU Shoe
Raw Material: PCU Model: KT-618
Required Labor: 1-2 Workers Finished Products: PCU Shoe
Showroom Location: None Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other Weight: 5900
Highlight:

PCU Shoes Injection Machine

,

Rotary Footwear Injection Moulding Machine

,

Footwear Injection Moulding Machine 380V

Product Overview

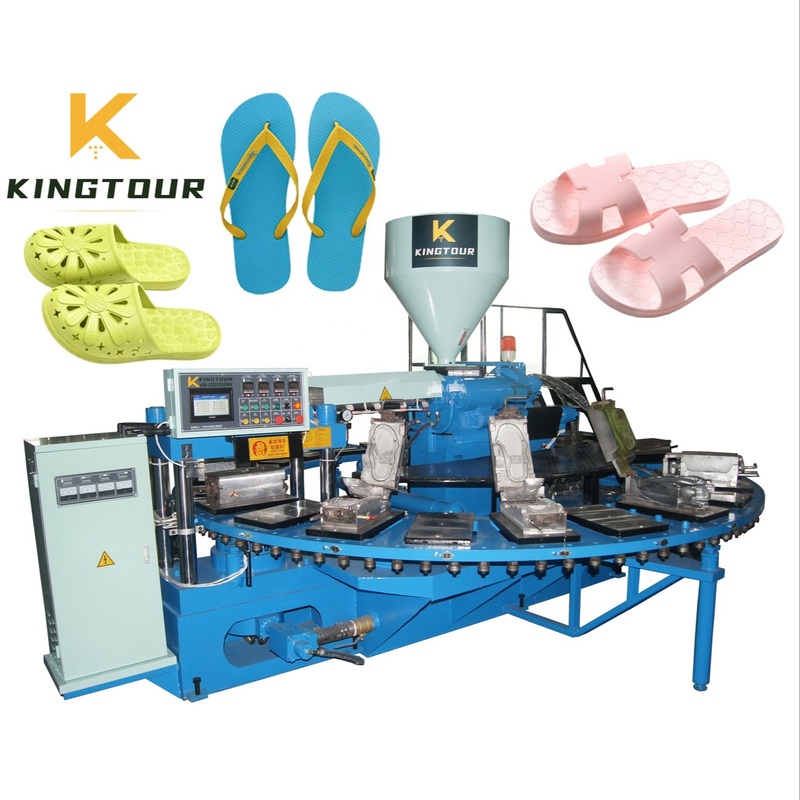

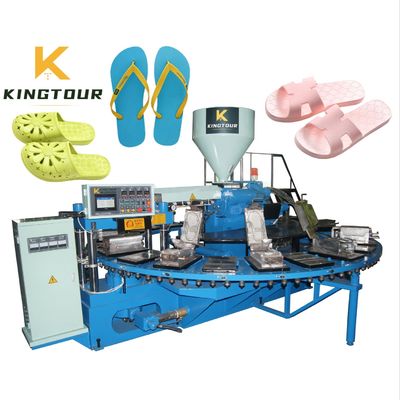

KT-618 Rotary PCU Shoes Injection Machine from Shoe making Machinery



This machine can make various kinds of slipper sandal flip flop and shoe with PVC material.
It only need 100 square meters and 2 workers, then you can start to make slipper sandal flip flop and shoe.

Product: Specialized in the production of full plastic slipper sandal shoe flip flop and sole etc.
Applicable material: Compact and expanded thermoplastic material, such as PVC PCU and TPR.

1. Computerization in analysis and design,the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese etc.

3. Conformed to human engineering in design, it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T for different design and material, to achieve the best quality of product.
FEATURES AT A GLANCE
Specification of slipper making machine
Model: KT-618
Production: 300-440 Pcs/Hour
Work station: 24 Station
Clamping force: 80/100/120 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 4500*3800*2350 mm
Machine weight: 5900 kgs
Loading into a 20 feet container
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 0
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 2
Down elevation
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 4
Left elevation
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 6
Front elevation
Machine Video

Finished samples
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 8

Flip flop sample produced by our machine

You can send me your ideal design to us, we can customized the mold with your logo and other requirements.
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 10

Slipper sample produced by our machine

We have more than 10,000 designs in our sample room, please contact me for more designs.
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 12
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 14
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 16
Flip flop making machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 18
Rain boot making Machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 20
Plastic shoe making Machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 22
4 Station EVA Slipper Making Machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 24
6 Station EVA Slipper Making Machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 26
8 Station EVA Slipper Making Machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 28
1 color Sole Making Machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 30
2 color Sole Making Machine

PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 32
3color Sole Making Machine

PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 34
Static 2 Station Sole Making Machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 36
Static 3 Station Sole Making Machine

PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 38
Static 4 Station Sole Making Machine

PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 40
1 Color DIP shoe Making Machine
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 42
2 color DIP shoe Making Machine

PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 44
PP insole Making Machine

PRODUCT CONFIGURATION
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 46
PLC+Full-touch screen operation
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 48
Imported control valve
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 50
Power saving of servo system
CONTAINER LOADING
PCU Shoes Injection Machine Rotary Footwear Injection Moulding Machine 380V / 220V 52
CONTAINER LOADING
We have shipped our machine to many many countries and cooperate with our customer all the time.
