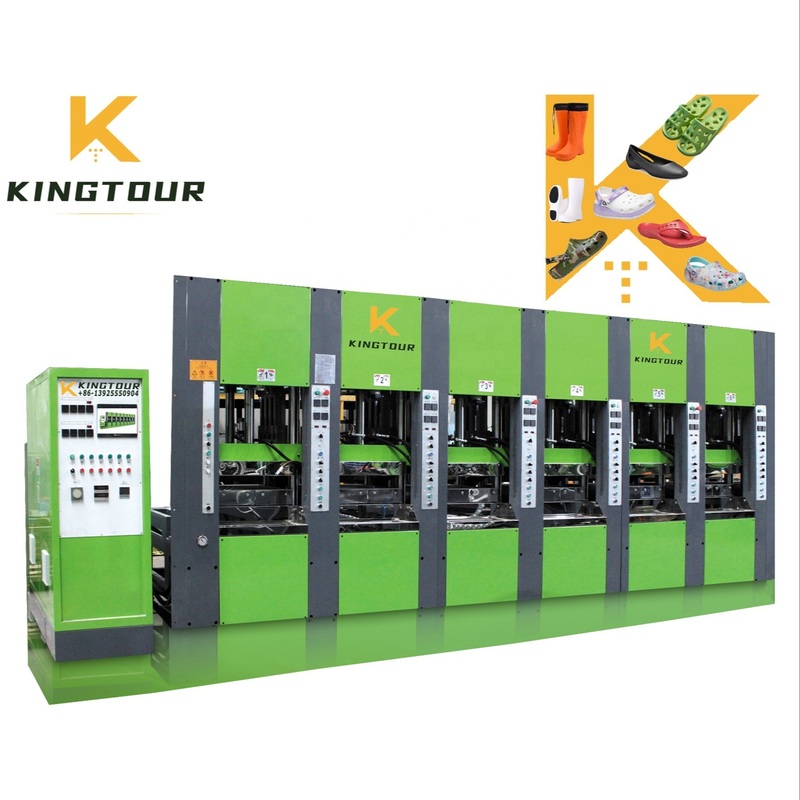

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W

Large Image :  Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W Get Best Price

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: KINGTOUR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $79,800-88,800
Packaging Details: Professional safety export package
Delivery Time: 5-35 Days
Payment Terms: TT,LC,DP
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Product Name: EVA Sole Making Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 320-420 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 121500 Dimension(l*w*h): 7960*4560*2860mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Weight (KG): 26000 Function: To Make EVA Sole
Raw Material: EVA Model: KT-686
Required Labor: 1-2 Workers Finished Products: EVA Sole
Highlight:

Automatic EVA Shoe Making Machine

,

6 Station Sole Making Machine

,

Sole Making Machine 121500W

Product Overview



KT-686 EVA Shoe Sole Making Machine

This machine can make various kinds of slipper, shoe, sandal, boot and sole with EVA material.
It only need 100 square meters and 2 workers, then you can start to make slippers.
it is very suitable for the new investors.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The high clamping force for the production of every kind of EVA items and it enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Each mould-holder fits 2 moulds, Automatic compensation of the mould plates,Fast opening of mould-holders thanks to toggle system,350 mm opening stroke.

5. One station with one set mold,pressure, time of moulding,mould temperature and cooling time all controlled
independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Low operate platform,Operating height is ergonomic and comfortable .

9. It does not need water cooling circulation for mold station.

10. Automatic safety door and fence structure ensure the safety of personnel.
FEATURES AT A GLANCE
Specification of EVA slipper making machine
Model: KT-686
Production: 400-600 Pcs/Hour
Work station: 6 Station
Clamping force: 180 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 9.8 kw*2
Heating plate: 76.8 kw
Hydraulic system:51.9 kw
Total power: 150 kw/h
Temperature control: 4 section
Machine dimension: 8100*4600*3050 mm
Machine weight: 25800 kgs
Loading into a 40 feet container


Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 0
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 2
4 Station EVA Slipper Making Machine
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 4
8 Station EVA Slipper Making Machine

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 6
10 Station EVA Slipper Making Machine

Finished samples
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 8

Flip flop sample produced by our machine

You can send me your ideal design to us, we can customized the mold with your logo and other requirements.
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 10

Slipper sample produced by our machine

We have more than 10,000 designs in our sample room, please contact me for more designs.
Machine Video

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 12
Slipper Making Machine
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 14
Rain Boot Making Machine

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 16
Plastic Shoe Making Machine

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 18
1 Color Sole Making Machine
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 20
2 Color Sole Making Machine

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 22
3 Color Sole Making Machine

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 24
Static 2 Station Sole Making Machine
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 26
Static 3 Station Sole Making Machine

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 28
Static 4 Station Sole Making Machine

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 30
1 Color DIP Shoe Making Machine
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 32
2 Color DIP Shoe Making Machine

Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 34
PP Insole Making Machine

PRODUCT CONFIGURATION
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 36
PLC+Full-touch screen operation
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 38
Imported control valve
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 40
Power saving of servo system
CONTAINER LOADING
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 42
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 44
Certificate
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 46
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 48
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 50
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 52
SALES AND SERVICE NETWORK
Automatic EVA Shoe Making Machine 6 Station Sole Making Machine 121500W 54
