One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612

One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612

Large Image :  One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $19,900-29,900
Contact Now
Detailed Product Description
Product Name: Shoe Sole Making Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 200-280 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 18500 Dimension(l*w*h): 4190*2260*2360mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Function: To Make PVC Sole Raw Material: PVC
Model: KT-6612 Required Labor: 1 Worker
Finished Products: PVC Sole Showroom Location: None
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Weight: 5900
Highlight:

One Color Shoe Sole Making Machine

,

12 Station PVC Sole Injection Machine

,

PVC Sole Injection Machine 18500W

Product Overview

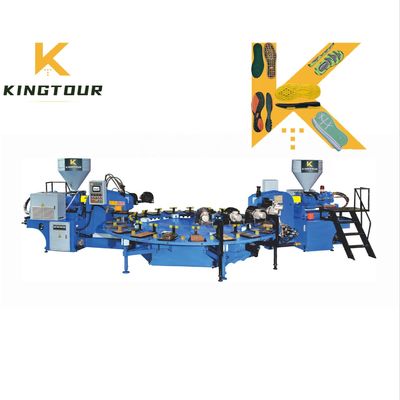

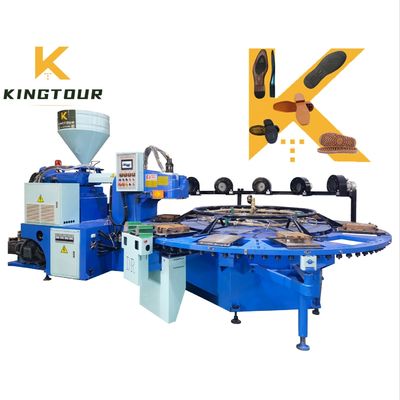

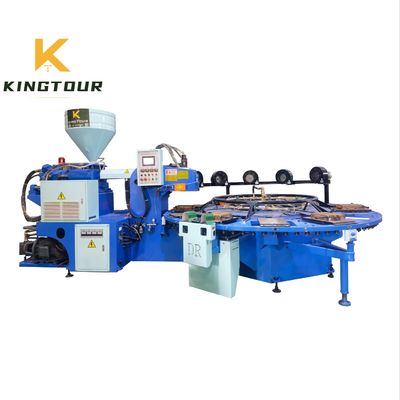

12 Stations Rotary One Color PVC Sole Making Machine---KT-6612

This machine can make various kinds of sole with PVC material.
It only need 100 square meters and 2 workers, then you can start to make sole.

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design,it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote
productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is
clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.
FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-6612
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 80/100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 4000*2100*2350 mm
Machine weight: 5500 kgs
Loading into a 20 feet container

One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 0

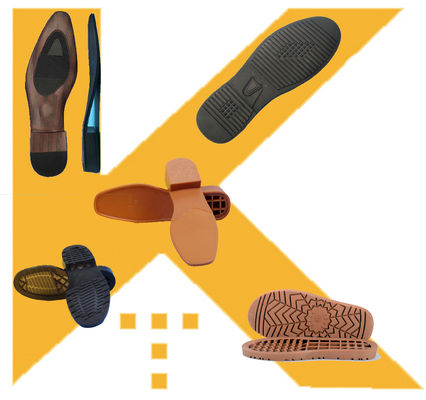

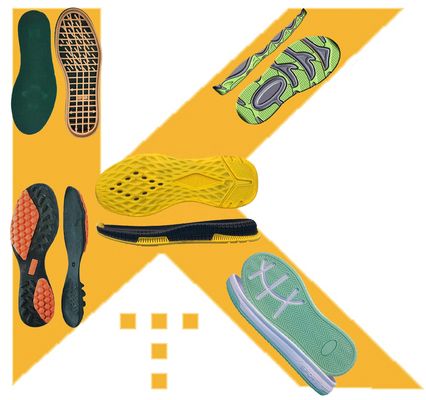

Sole sample
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 2

Man

1 Color PVC Sole
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 4

Woman

2 Color PVC Sole
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 6

Children

3 Color PVC Sole
PVC Sole Making Machine Video

One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 8
2 color PVC sole making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 10
3 color PVC sole making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 12
4 Color PVC sole making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 14
2 station PVC sole making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 16
3 station PVC sole making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 18
4 Color PVC sole making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 20
PVC slipper making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 22
PVC shoe making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 24
rain boot making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 26
4 station EVA sole making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 28
6 station EVA sole making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 30
8 station EVA sole making machine

One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 32
1 color DIP shoe making machine
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 34
2 color DIP shoe making machine

One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 36
PP insole making machine

PRODUCT CONFIGURATION
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 38
PLC+Full-touch screen operation
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 40
Imported control valve
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 42
Power saving of servo system
CONTAINER LOADING
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 44
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 46
Certificate
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 48
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 50
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 52
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 54
SALES AND SERVICE NETWORK
One Color Shoe Sole Making Machine 12 Station PVC Sole Injection Machine 18500W KT-6612 56
