Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine

All Products
Shoe Making Machine (6)
Gumboots Making Machine (9)
Shoe Injection Machine (6)
Slipper Making Machine (19)
Blowing Slipper Machine (6)
EVA Shoes Injection Machine (9)
EVA Shoe Making Machine (7)
Plastic Shoe Making Machine (6)
Sports Shoe Making Machine (6)
PVC Shoe Making Machine (6)
Rubber Sole Making Machine (7)
Shoe Sole Making Machine (34)
Plastic Shoe Mold (7)
Sandals Making Machine (6)
I'm Online Chat Now
Certification
China Dongguan Kingtour Technology Co., Ltd. certification

Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine

Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine

Large Image :  Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $48,000-66,000
Contact Now
Detailed Product Description
Product Name: Shoe Sole Making Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 200-280 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 70000 Dimension(l*w*h): 7300*3900*2430 Mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Function: To Make Shoe Sole Raw Material: PVC TR TPU TPR
Model: KT-668 Required Labor: 1 Worker
Finished Products: Shoe Sole Showroom Location: None
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Weight: 16800
Highlight:

Full Automatic Shoe Sole Making Machine

,

8 Station Sole Injection Molding Machine

,

Rotary Sole Injection Molding Machine

Product Overview

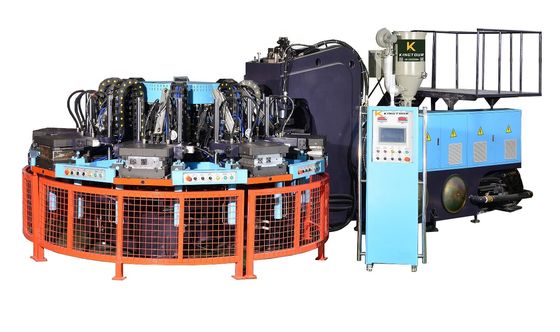

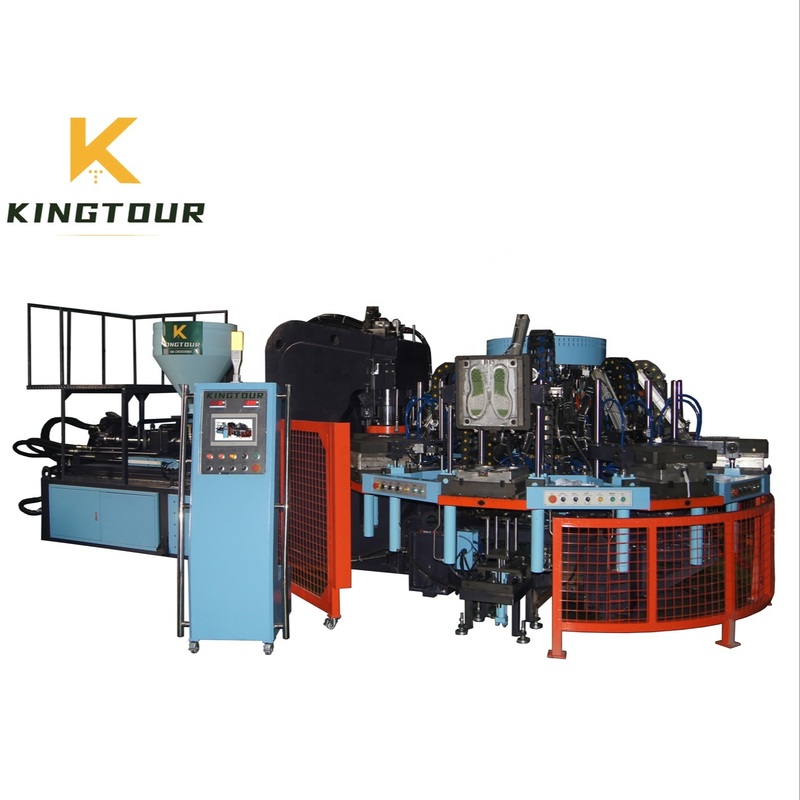

KT-668 Full Automatic 8 Station Rotary PVC TPR TR TPU Shoe Sole Injection Molding Machine

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design,it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote
productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is
clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.

FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-668
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 7300*3900*2430 mm
Machine weight: 16800 kgs
Loading into a 40 feet container


Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 0
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 2
1 color PVC sole making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 4
2 color PVC sole making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 6
3 Color PVC sole making machine
Machine Video

Sole sample
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 8

Man

1 Color Sole
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 10

Woman

2 Color Sole
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 12

Children

3 Color Sole
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 14
Static 2 station sole making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 16
Static 3 station sole making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 18
Static 4 station sole making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 20
4 station EVA sole making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 22
6 station EVA sole making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 24
8 station EVA sole making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 26
PVC slipper making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 28
PVC shoe making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 30
Rain boot making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 32
1 Color DIP shoe making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 34
2 Color DIP shoe making machine
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 36
PP insole making machine
PRODUCT CONFIGURATION
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 38
PLC+Full-touch screen operation
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 40
Imported control valve
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 42
Power saving of servo system
CONTAINER LOADING
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 44
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 46
Certificate
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 48
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 50
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 52
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 54
SALES AND SERVICE NETWORK
Full Automatic Shoe Sole Making Machine 8 Station Rotary Sole Injection Molding Machine 56
