8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine

All Products
Shoe Making Machine (6)
Gumboots Making Machine (9)
Shoe Injection Machine (6)
Slipper Making Machine (19)
Blowing Slipper Machine (6)
EVA Shoes Injection Machine (9)
EVA Shoe Making Machine (7)
Plastic Shoe Making Machine (6)
Sports Shoe Making Machine (6)
PVC Shoe Making Machine (6)
Rubber Sole Making Machine (7)
Shoe Sole Making Machine (34)
Plastic Shoe Mold (7)
Sandals Making Machine (6)
I'm Online Chat Now
Certification
China Dongguan Kingtour Technology Co., Ltd. certification

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine

Large Image :  8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $20,000-23,000
Contact Now
Detailed Product Description
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: PLC, Bearing, Gearbox, Motor, Pump Production Capacity: 200-280 Pairs/hour
Voltage: 380V/220V 3 Phase Power(w): 18500
Dimension(l*w*h): 4190*2260*2360mm Warranty: 1 Year
Key Selling Points: Easy To Operate Weight (KG): 5900
Product Name: PVC Sole Injection Molding Machine Function: To Make PVC Sole
Raw Material: PVC Model: KT-666
Required Labor: 1 Worker Finished Products: PVC Sole
Highlight:

8 Station Shoe Sole Making Machine

,

One Color Sole Injection Molding Machine

,

PVC Sole Injection Molding Machine

Product Overview

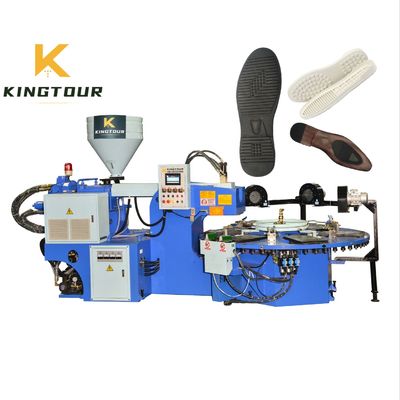

Rotary One Color PVC Sole Injection Molding Machine
This machine can make various kinds of sole with PVC material.
It only need 100 square meters and 2 workers, then you can start to make sole.

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design, it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote
productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is
clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.
FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-666
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 80/100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 4000*2100*2350 mm
Machine weight: 5500 kgs
Loading into a 20 feet container


8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 0
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 2

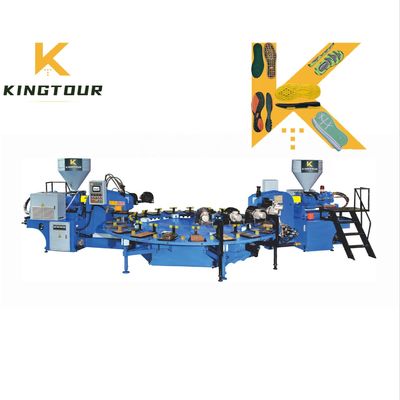

2 color PVC sole making machine
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 4

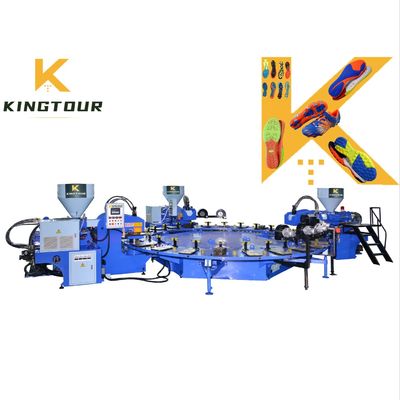

3 color PVC sole making machine
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 6
4 Color PVC sole making machine

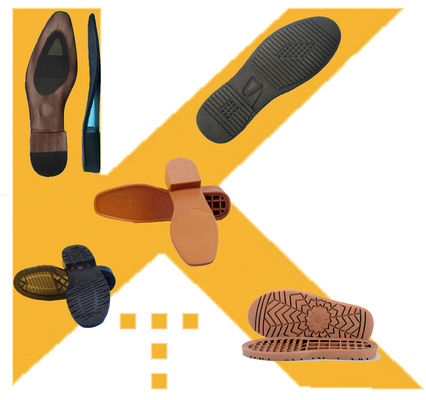

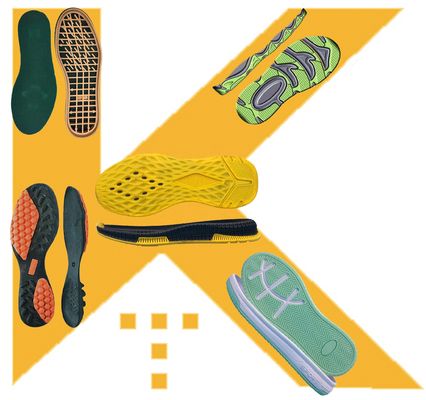

Sole sample
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 8

Man

1 Color PVC Sole
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 10

Woman

2 Color PVC Sole
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 12

Children

3 Color PVC Sole
PVC Sole Making Machine Video

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 14
Static 2 station sole making machine
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 16
Static 3 station sole making machine

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 18
Static 4 station sole making machine

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 20
PVC slipper making machine
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 22
PVC shoe making machine

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 24
Rain boot making machine

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 26
4 Station EVA slipper making machine
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 28
6 Station EVA slipper making machine

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 30
8 Station EVA slipper making machine

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 32
1 color DIP shoe making machine
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 34
2 color DIP shoe making machine

8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 36
PP insole making machine

PRODUCT CONFIGURATION
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 38
PLC+Full-touch screen operation
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 40
Imported control valve
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 42
Power saving of servo system
Certificate
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 44
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 46
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 48
CONTAINER LOADING
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 50
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 52
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 54
SALES AND SERVICE NETWORK
8 Station Shoe Sole Making Machine One Color PVC Sole Injection Molding Machine 56
