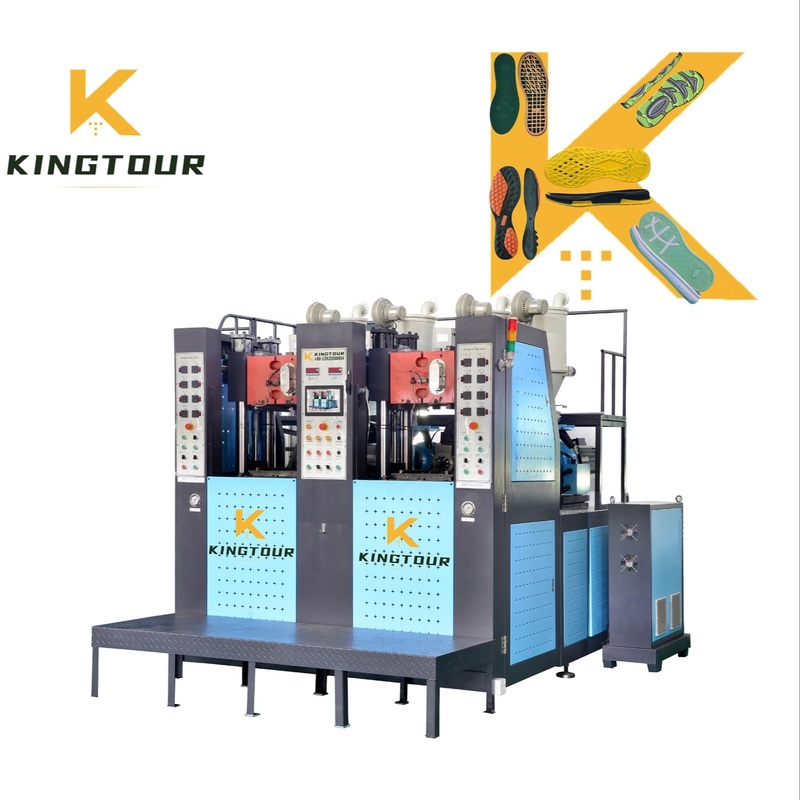

50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V

50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V

Large Image :  50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $49,000-75,000
Contact Now
Detailed Product Description
Product Name: Shoes Sole Making Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 200-280 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 50500 Dimension(l*w*h): 3650*3850*2850mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Weight (KG): 9800 Function: To Make PVC Sole
Raw Material: PVC Model: KT-868
Required Labor: 2 Workers Finished Products: PVC Sole
Highlight:

50500W Shoes Sole Making Machine

,

Static Injection Molding Machine

,

Shoes Sole Making Machine 220V

Product Overview

KT-8682 Static Injection Molding Machine for Making PVC TPU TR TPR Shoe Sole


Product: Specialized in the production of soles and soles with inserts.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The 220 tons clamping force enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Injectors with specific screws(nanoscale processing) having profiles designed for different material types.

5. One station with one set mold ,pressure, time of moulding, mould temperature and cooling time all controlled independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Multi-station machine but less workers need.

9. Extreme production flexibility in the colors, materials and programming.

10. Automatic safety door and fence structure ensure the safety of personnel.Product: Specialized in the production of soles and soles with inserts.
FEATURES AT A GLANCE
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 0
Specification of sole making machine
Model: KT-868
Production: 200-400 Pcs/Hour
Work station: 2 Station
Clamping force: 80/100/120/150/220 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 6*2 kw
Motor: 15kw*2
Power consumption: 15-20 kw/h
Temperature control: 4 *2 section
Machine dimension: 3650*3800*2700 mm
Machine weight: 11000 kgs
Loading into a 40 feet HQ
Machine Video

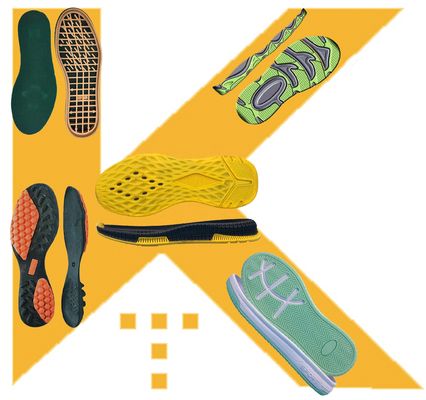

Sole sample
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 2

1 Color

Sole sample
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 4

2 Color

Sole sample
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 6

3 Color

Sole sample
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 8

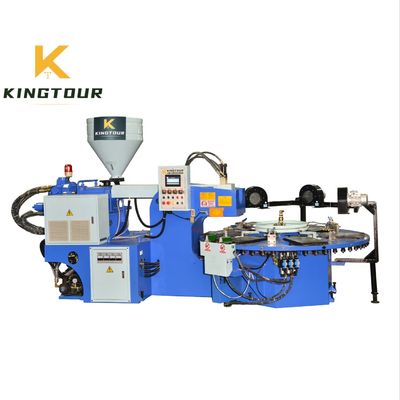

Rotary sole making machine
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 10

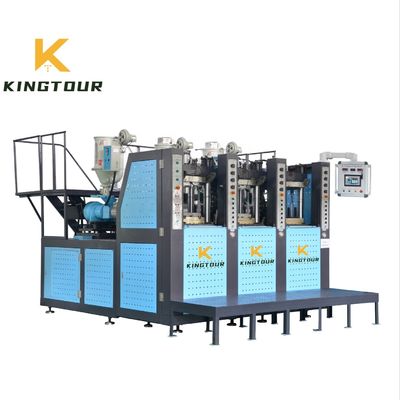

Static 3 Station sole making machine
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 12

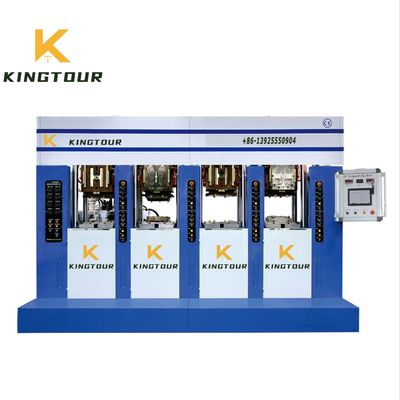

Static 4 Station sole making machine

50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 14

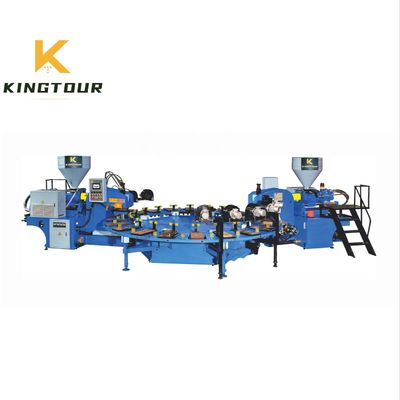

2 color sole making machine
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 16
3 color sole making machine
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 18
4 color sole making machine

50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 20
slipper making machine
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 22
rain boot making machine
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 24
DIP shoe making machine

PRODUCT CONFIGURATION
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 26
PLC+Full-touch screen operation
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 28
Imported control valve
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 30
Power saving of servo system
SALES AND SERVICE NETWORK
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 32
Certificate
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 34
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 36
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 38
CONTAINER LOADING
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 40
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 42
50500W Shoes Sole Making Machine Static Injection Molding Machine 380V / 220V 44
