3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole

Large Image :  3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $50,000-93,000
Contact Now
Detailed Product Description
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: PLC, Bearing, Gearbox, Motor, Pump Production Capacity: 200-280 Pairs/hour
Voltage: 380V/220V 3 Phase Power(w): 50500
Dimension(l*w*h): 3650*3850*2850mm Warranty: 1 Year
Key Selling Points: Easy To Operate Weight (KG): 12800
Product Name: PVC Sole Making Machine Function: To Make PVC Sole
Raw Material: PVC Model: KT-8683
Required Labor: 2 Workers Finished Products: PVC Sole
Highlight:

Static Injection Moulding Machines

,

TPU Shoes Sole Making Machine

,

TR Shoes Sole Making Machine

Product Overview

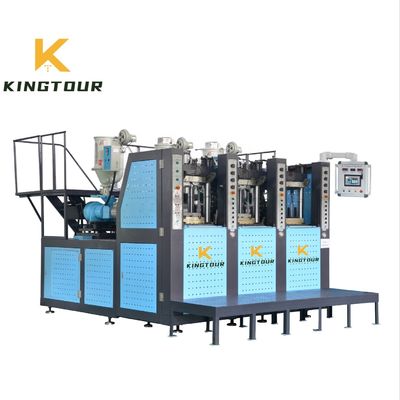

KT-8683 3 Station Static machine for making PVC TPU TR TPR shoe sole

Product: Specialized in the production of soles and soles with inserts.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The 220 tons clamping force enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Injectors with specific screws(nanoscale processing) having profiles designed for different material types.

5. One station with one set mold ,pressure, time of moulding, mould temperature and cooling time all controlled independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to35%-50%.

8. Multi-station machine but less workers need.

9. Extreme production flexibility in the colors, materials and programming.

10. Automatic safety door and fence structure ensure the safety of personnel.Product: Specialized in the production of soles and soles with inserts.

FEATURES AT A GLANCE
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 0
Specification of sole making machine
Model: KT-8683
Production: 200-400 Pcs/Hour
Work station: 3 Station
Clamping force: 80/100/120/150/220 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 6*2 kw
Motor: 15kw*2
Power consumption: 15-20 kw/h
Temperature control: 4 *2 section
Machine dimension: 4650*3800*2700 mm
Machine weight: 15000 kgs
Loading into a 40 feet HQ

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 2

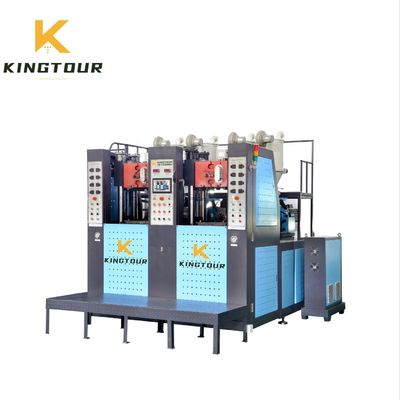

2 Station 2 color PVC sole machine
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 4
2 Station 2 color TPU sole machine
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 6

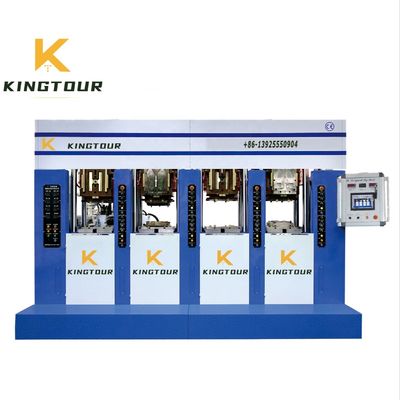

4 Station PVC sole making machine
Sole sample
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 8

Man


3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 10

Woman


3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 12

Children


Machine Video

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 14
1 color sole making machine
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 16
2 color sole making machine

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 18
3 color sole making machine

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 20
4 station EVA sole making machine
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 22
6 station EVA sole making machine

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 24
8 station EVA sole making machine

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 26
PVC slipper making machine
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 28
PVC shoe making machine

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 30
Rain boot making machine

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 32
1 color DIP shoe making machine
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 34
2 color DIP shoe making machine

3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 36
PP insole making machine

PRODUCT CONFIGURATION
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 38
PLC+Full-touch screen operation
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 40
Imported control valve
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 42
Power saving of servo system
CONTAINER LOADING
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 44
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 46
Certificate
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 48
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 50
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 52
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 54
SALES AND SERVICE NETWORK
3 Station Static Injection Moulding Machines For making PVC TPU TR TPR shoe sole 56
