12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine

12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine

Large Image :  12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $19,900-29,900
Contact Now
Detailed Product Description
Product Name: Shoe Sole Making Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 200-280 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 18500 Dimension(l*w*h): 5800*2260*2360mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Function: To Make Shoe Sole Raw Material: PVC
Required Labor: 1 Worker Finished Products: Shoe Sole
Showroom Location: None Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other Weight: 5900
Highlight:

12 Station Shoe Sole Making Machine

,

Shoe Sole Making Machine 18500W

,

18500W Shoe Sole Injection Moulding Machine

Product Overview



KT-6612 Rotary Shoe Sole Making Machine

This machine can make various kinds of shoe sole with PVC material.
It only need 100 square meters and 2 workers, then you can start to make sole.

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design,it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote
productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is
clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.

FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-6612
Production: 400-660 Pcs/Hour
Work station: 12 Station
Clamping force: 80/100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 5800*2100*2350 mm
Machine weight: 5800 kgs
Loading into a 20 feet container


12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 0
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 2

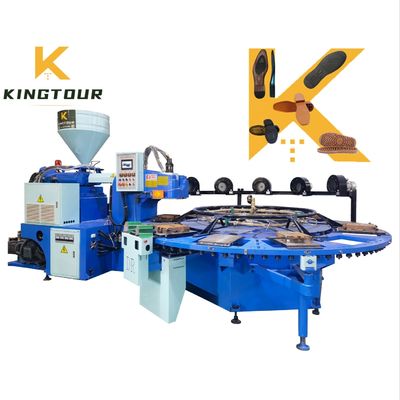

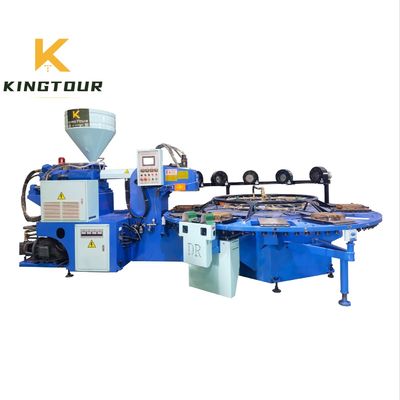

1 color PVC sole making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 4

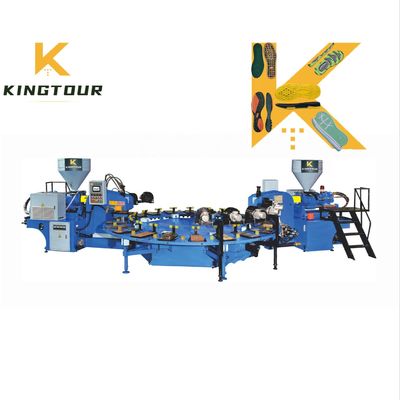

2 color PVC sole making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 6
3 Color PVC sole making machine
Machine Video

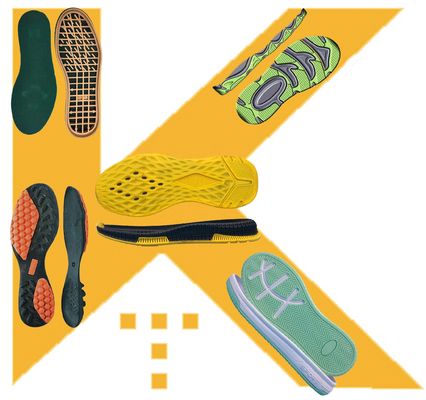

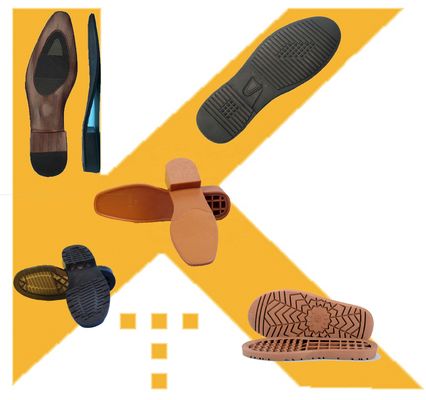

Sole sample
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 8

Man

1 Color Sole
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 10

Woman

2 Color Sole
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 12

Children

3 Color Sole
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 14

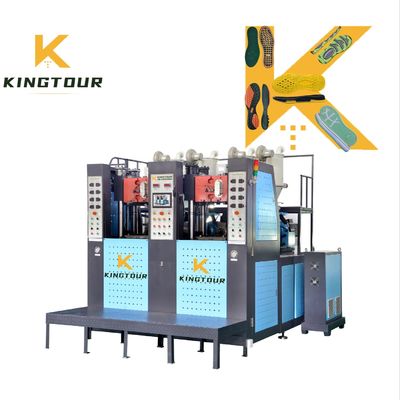

Static 2 station sole making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 16
Static 3 station sole making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 18
Static 4 station sole making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 20
4 station EVA sole making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 22
6 station EVA sole making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 24
8 station EVA sole making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 26
PVC slipper making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 28
PVC shoe making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 30
Rain boot making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 32
1 Color DIP shoe making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 34
2 Color DIP shoe making machine
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 36
PP insole making machine
PRODUCT CONFIGURATION
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 38
PLC+Full-touch screen operation
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 40
Imported control valve
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 42
Power saving of servo system
CONTAINER LOADING
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 44
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 46
Certificate
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 48
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 50
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 52
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 54
SALES AND SERVICE NETWORK
12 Station Shoe Sole Making Machine 18500W Shoe Sole Injection Moulding Machine 56
