Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666

Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666

Large Image :  Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $20,000-23,000
Contact Now
Detailed Product Description
Product Name: Sole Injection Moulding Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 200-280 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 18500 Dimension(l*w*h): 4190*2260*2360mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Weight (KG): 5800 Function: To Make PVC Shoe Sole
Raw Material: PVC Model: KT-666
Required Labor: 1 Worker Finished Products: PVC Sole
Highlight:

Rotary Sole Injection Moulding Machine

,

Sole Injection Moulding Machine 18500W

,

18500W PVC Sole Making Machine

Product Overview

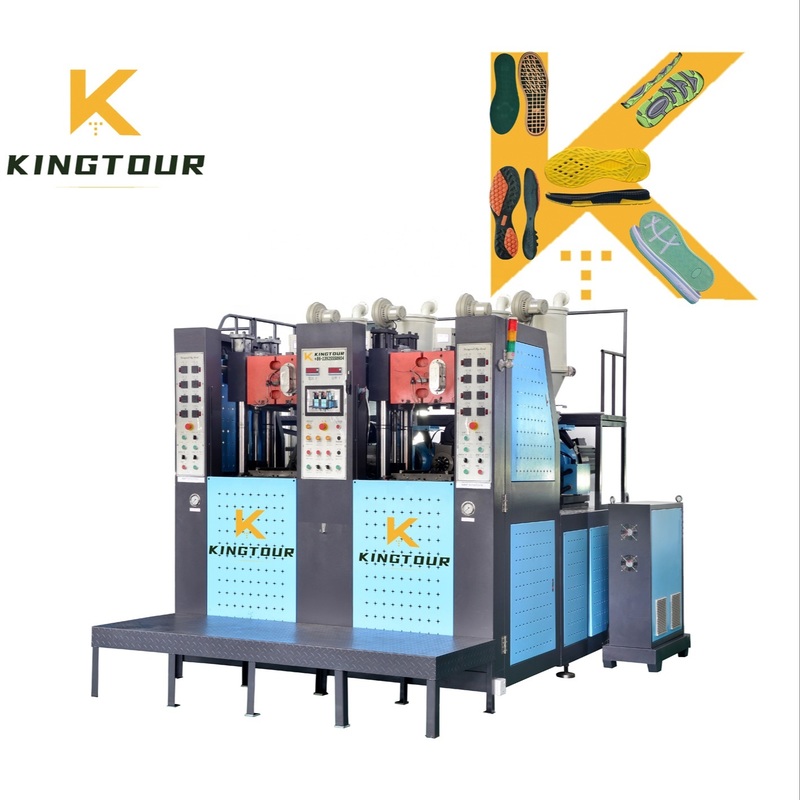

KT-666 Rotary pvc sole injection moulding machine


This machine can make various kinds of sole with PVC TPU TR TPR material.
It only need 100 square meters and 2 workers, then you can start to make sole.

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design,it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.
FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-666
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 80/100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 4000*2100*2350 mm
Machine weight: 5500 kgs
Loading into a 20 feet container


Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 0

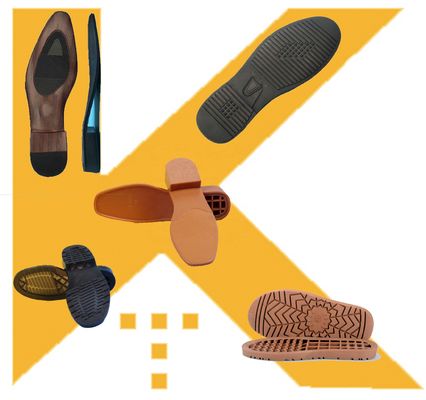

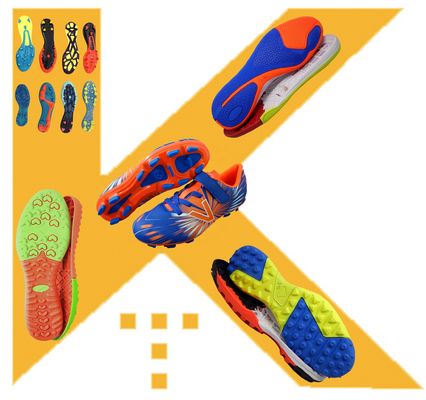

Sole sample
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 2

Man

1 Color Sole
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 4

Woman

2 Color Sole
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 6

Children

3 Color Sole
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 8
1 color PVC sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 10
2 color PVC sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 12
3 Color PVC sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 14
4 color PVC sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 16
2 color TPU sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 18
2 Color TPU sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 20
1 color TPU sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 22
1 color TPU sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 24
1 Color TPU sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 26
2 Station PVC sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 28
3 Station PVC sole making machine
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 30
4 Station PVC sole making machine
PVC Sole Making Machine Video

PRODUCT CONFIGURATION
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 32
PLC+Full-touch screen operation
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 34
Imported control valve
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 36
Power saving of servo system
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 38
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 40
Certificate
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 42
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 44
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 46
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 48
SALES AND SERVICE NETWORK
Rotary Sole Injection Moulding Machine 18500W PVC Sole Making Machine KT-666 50
