PVC Injection Machines for Soles

PVC Injection Machines for Soles
PVC Injection Machines for Soles PVC Injection Machines for Soles PVC Injection Machines for Soles PVC Injection Machines for Soles PVC Injection Machines for Soles PVC Injection Machines for Soles

Large Image :  PVC Injection Machines for Soles Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15,900-25,900
Contact Now
Detailed Product Description
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Core Components: PLC, Bearing, Gearbox, Motor, Pump Production Capacity: 200-280 Pairs/hour
Voltage: 380V/220V 3 Phase Power(w): 18500
Dimension(l*w*h): 4190*2260*2360mm Warranty: 1 Year
Key Selling Points: Easy To Operate Weight (KG): 6000
Product Name: Pvc Injection Machines For Soles Function: To Make PVC Shoe Sole
Raw Material: PVC Model: KT-6612
Required Labor: 1 Worker Finished Products: PVC Sole

Product Overview

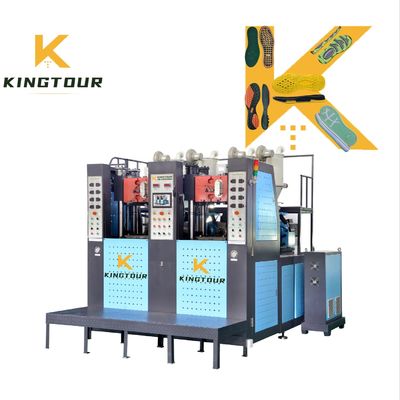

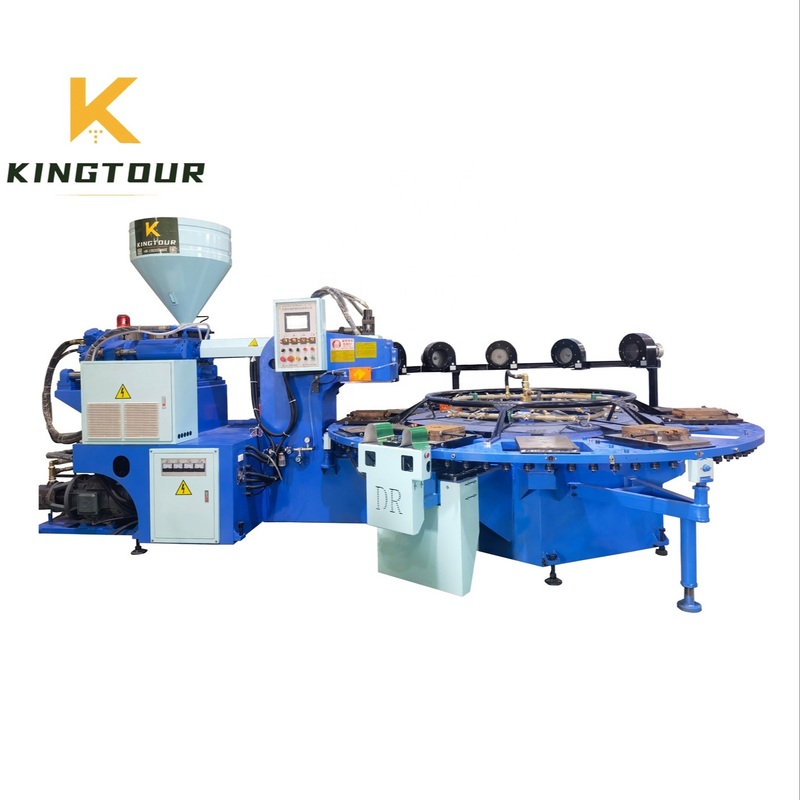

KT-6612 PVC injection machines for soles

This machine can make various kinds of sole with PVC TPU TR TPR material.
It only need 100 square meters and 2 workers, then you can start to make sole.

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design,it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.
FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-666
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 80/100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 4000*2100*2350 mm
Machine weight: 5500 kgs
Loading into a 20 feet container
PVC Injection Machines for Soles 0

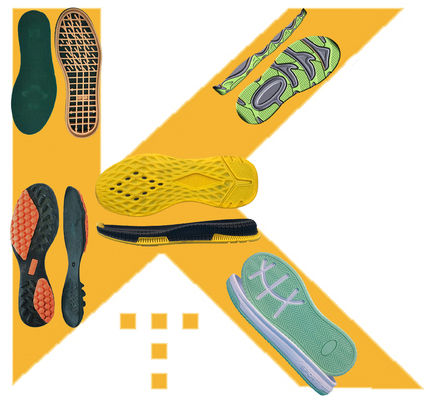

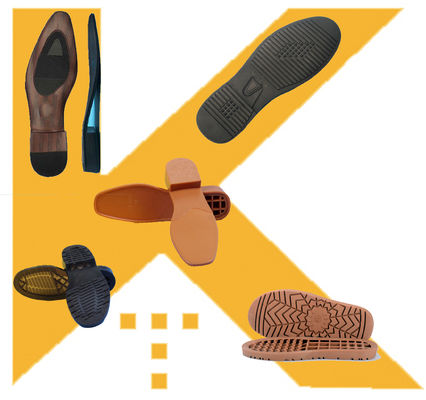

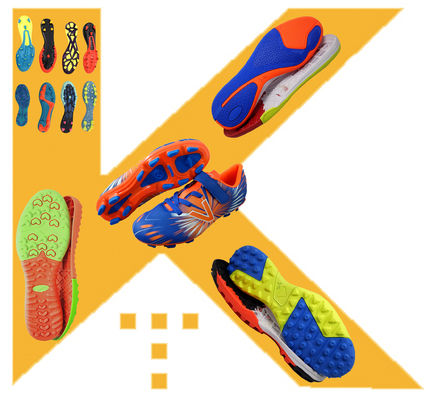

Sole sample
PVC Injection Machines for Soles 2

Man

1 Color Sole
PVC Injection Machines for Soles 4

Woman

2 Color Sole
PVC Injection Machines for Soles 6

Children

3 Color Sole
PVC Injection Machines for Soles 8
1 color PVC sole making machine
PVC Injection Machines for Soles 10
2 color PVC sole making machine
PVC Injection Machines for Soles 12
3 Color PVC sole making machine
PVC Injection Machines for Soles 14
4 color PVC sole making machine
PVC Injection Machines for Soles 16
2 color TPU sole making machine
PVC Injection Machines for Soles 18
2 Color TPU sole making machine
PVC Injection Machines for Soles 20
1 color TPU sole making machine
PVC Injection Machines for Soles 22
1 color TPU sole making machine
PVC Injection Machines for Soles 24
1 Color TPU sole making machine
PVC Injection Machines for Soles 26
2 Station PVC sole making machine
PVC Injection Machines for Soles 28
3 Station PVC sole making machine
PVC Injection Machines for Soles 30
4 Station PVC sole making machine
PVC Sole Making Machine Video
PRODUCT CONFIGURATION
PVC Injection Machines for Soles 32
PLC+Full-touch screen operation
PVC Injection Machines for Soles 34
Imported control valve
PVC Injection Machines for Soles 36
Power saving of servo system
PVC Injection Machines for Soles 38
PVC Injection Machines for Soles 40
Certificate
PVC Injection Machines for Soles 42
PVC Injection Machines for Soles 44
PVC Injection Machines for Soles 46
PVC Injection Machines for Soles 48
SALES AND SERVICE NETWORK
PVC Injection Machines for Soles 50
