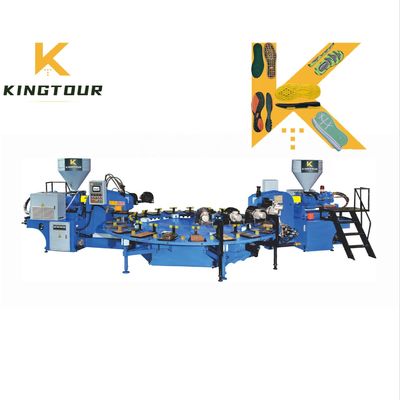

380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666

All Products
Shoe Making Machine (6)
Gumboots Making Machine (9)
Shoe Injection Machine (6)
Slipper Making Machine (19)
Blowing Slipper Machine (6)
EVA Shoes Injection Machine (9)
EVA Shoe Making Machine (7)
Plastic Shoe Making Machine (6)
Sports Shoe Making Machine (6)
PVC Shoe Making Machine (6)
Rubber Sole Making Machine (7)
Shoe Sole Making Machine (34)
Plastic Shoe Mold (7)
Sandals Making Machine (6)
I'm Online Chat Now
Certification
China Dongguan Kingtour Technology Co., Ltd. certification

380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666

380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666

Large Image :  380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $15,900-29,900
Contact Now
Detailed Product Description
Product Name: Shoe Sole Making Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 200-280 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 18500 Dimension(l*w*h): 4190*2260*2360mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Weight (KG): 5800 Function: To Make Shoe Sole
Raw Material: PVC TPR Model: KT-666
Required Labor: 1 Worker Finished Products: Shoe Sole
Highlight:

380V Shoe Sole Making Machine

,

220V Shoe Sole Making Machine

,

Rotary TPR Sole Making Machine

Product Overview



KT-666 Rotary PVC TPR Shoe Sole Machine

This machine can make various kinds of shoe sole with PVC material.
It only need 100 square meters and 2 workers, then you can start to make sole.

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design,it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote
productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is
clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.

FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-666
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 80/100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 4000*2100*2350 mm
Machine weight: 5500 kgs
Loading into a 20 feet container


380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 0
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 2

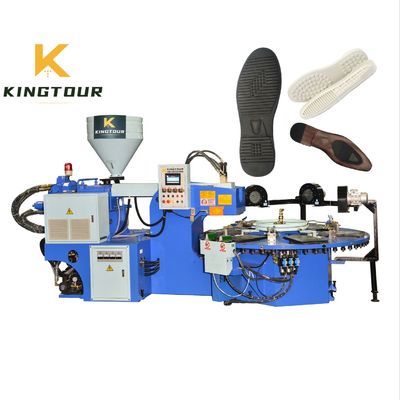

1 color PVC sole making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 4
2 color PVC sole making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 6
3 Color PVC sole making machine
Machine Video

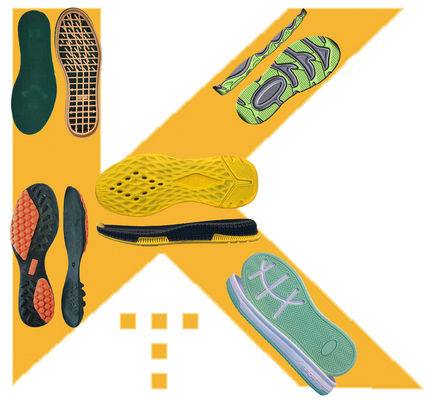

Sole sample
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 8

Man

1 Color Sole
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 10

Woman

2 Color Sole
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 12

Children

3 Color Sole
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 14
Static 2 station sole making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 16
Static 3 station sole making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 18
Static 4 station sole making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 20
4 station EVA sole making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 22
6 station EVA sole making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 24
8 station EVA sole making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 26
PVC slipper making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 28
PVC shoe making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 30
Rain boot making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 32
1 Color DIP shoe making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 34
2 Color DIP shoe making machine
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 36
PP insole making machine
PRODUCT CONFIGURATION
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 38
PLC+Full-touch screen operation
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 40
Imported control valve
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 42
Power saving of servo system
CONTAINER LOADING
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 44
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 46
Certificate
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 48
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 50
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 52
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 54
SALES AND SERVICE NETWORK
380V / 220V Shoe Sole Making Machine Rotary PVC TPR Sole Making Machine KT-666 56
