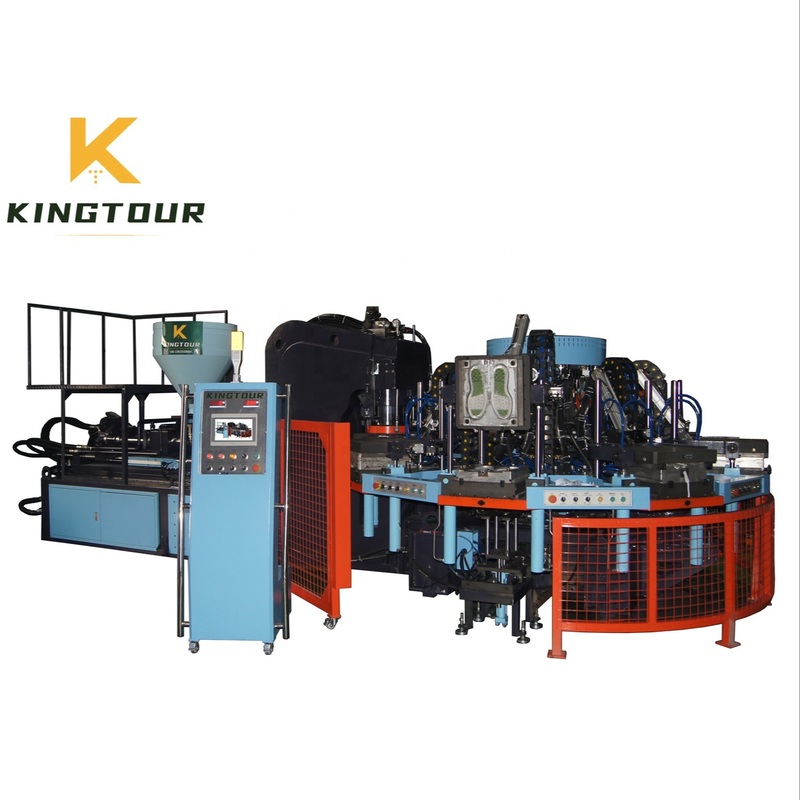

Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine

All Products
Shoe Making Machine (6)
Gumboots Making Machine (9)
Shoe Injection Machine (6)
Slipper Making Machine (19)
Blowing Slipper Machine (6)
EVA Shoes Injection Machine (9)
EVA Shoe Making Machine (7)
Plastic Shoe Making Machine (6)
Sports Shoe Making Machine (6)
PVC Shoe Making Machine (6)
Rubber Sole Making Machine (7)
Shoe Sole Making Machine (34)
Plastic Shoe Mold (7)
Sandals Making Machine (6)
I'm Online Chat Now
Certification
China Dongguan Kingtour Technology Co., Ltd. certification

Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine

Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine

Large Image :  Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $48,000-66,000
Contact Now
Detailed Product Description
Product Name: Shoe Sole Making Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 200-280 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 70000 Dimension(l*w*h): 7300*3900*2430 Mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Weight (KG): 11800 Function: To Make Shoe Sole
Raw Material: PVC TR TPU TPR Model: KT-668
Required Labor: 1 Worker Finished Products: Shoe Sole
Highlight:

Automatic Shoe Sole Making Machine

,

8 Station TPR Sole Moulding Machine

,

10 Station TPR Sole Moulding Machine

Product Overview



KT-668 Automatic 8- or 10-station machine for injecting soles in compact or expanded single-color thermoplastic materials (pvc, expanded pvc, tr and microtech).

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design,it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote
productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is
clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.

FEATURES AT A GLANCE
Specification of Sole making machine
Model: KT-668
Production: 400-660 Pcs/Hour
Work station: 8 Station
Clamping force: 100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 7300*3900*2430 mm
Machine weight: 16800 kgs
Loading into a 40 feet container


Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 0
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 2
1 color PVC sole making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 4
2 color PVC sole making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 6
3 Color PVC sole making machine
Machine Video

Sole sample
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 8

Man

1 Color Sole
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 10

Woman

2 Color Sole
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 12

Children

3 Color Sole
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 14
Static 2 station sole making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 16
Static 3 station sole making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 18
Static 4 station sole making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 20
4 station EVA sole making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 22
6 station EVA sole making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 24
8 station EVA sole making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 26
PVC slipper making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 28
PVC shoe making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 30
Rain boot making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 32
1 Color DIP shoe making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 34
2 Color DIP shoe making machine
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 36
PP insole making machine
PRODUCT CONFIGURATION
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 38
PLC+Full-touch screen operation
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 40
Imported control valve
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 42
Power saving of servo system

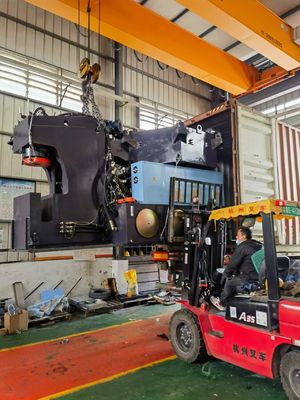

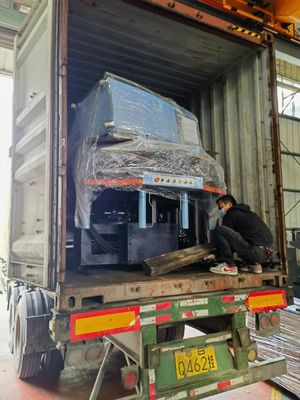

CONTAINER LOADING
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 44
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 46
Certificate
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 48
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 50
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 52
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 54
SALES AND SERVICE NETWORK
Automatic Shoe Sole Making Machine 8 Station / 10 Station TPR Sole Moulding Machine 56
