Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard

Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard

Large Image :  Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: Kingtour
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $19,900-30,900
Contact Now
Detailed Product Description
Name: PVC Sole Injection Machine Video Outgoing-inspection: Provided
Core Components: PLC, Bearing, Gearbox, Motor, Pump Production Capacity: 200-280 Pairs/hour
Voltage: 380V/220V 3 Phase Power(w): 18500
Dimension(l*w*h): 5980*3530*2360mm Warranty: 1.5 Years
Key Selling Points: Easy To Operate Weight (KG): 6500
Function: To Make PVC Shoe Sole Raw Material: PVC
Required Labor: 1 Worker Finished Products: PVC Sole
Highlight:

Rotary PVC Sole Injection Machine

,

PVC Sole Injection Machine 380V

,

220V TPU Injection Molding Machine

Product Overview

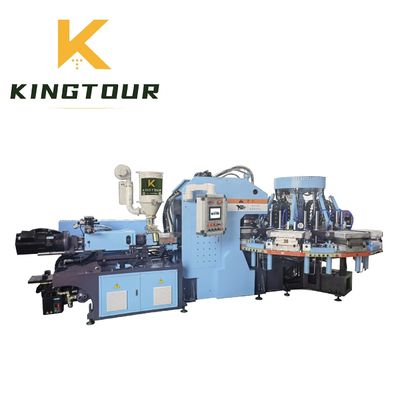

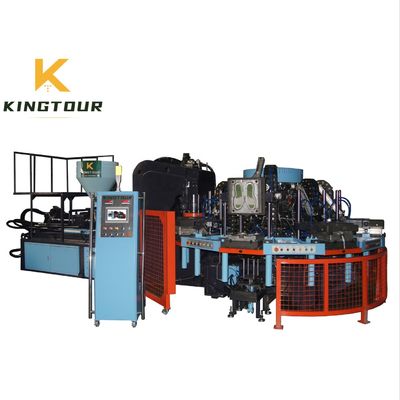

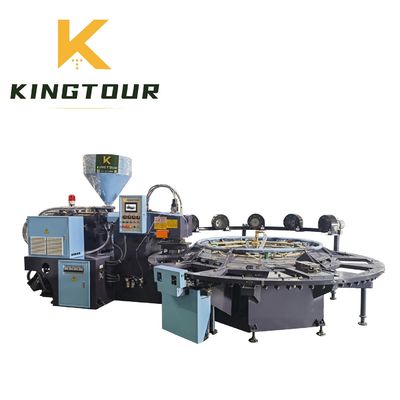

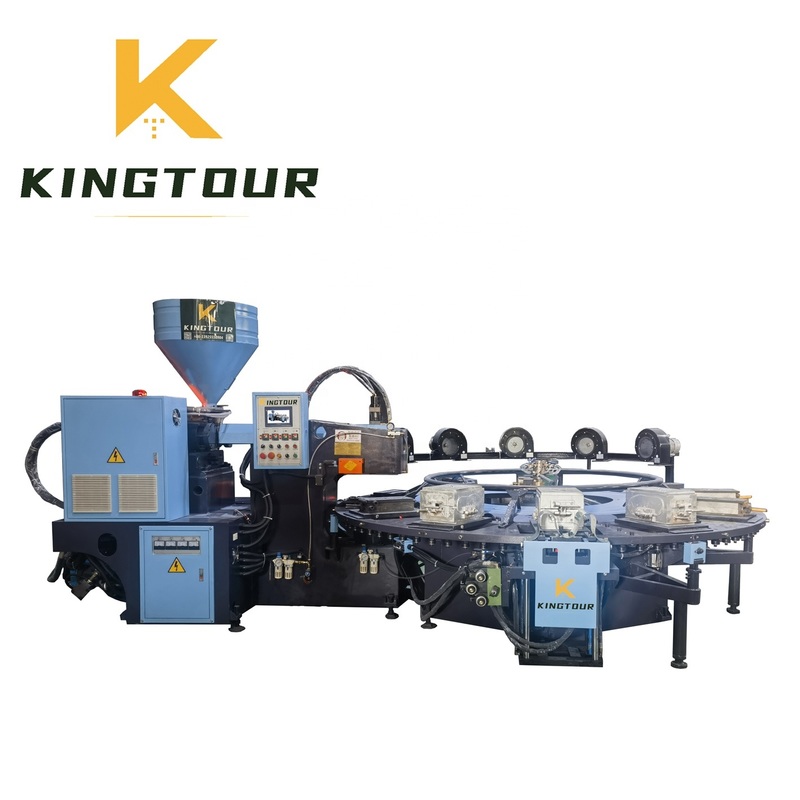

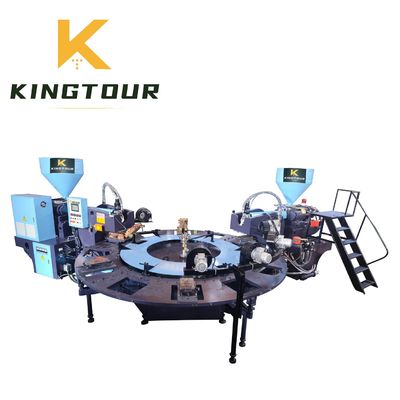

KT-6612L European Standard Rotary Injection Molding Machine For Making PVC TPU TPR Shoe Sole



This machine can make various kinds of sole with PVC TPU TR TPR material.
It only need 100 square meters and 2 workers, then you can start to make sole.

Product: Specialized in the production of TPU PVC TPR TR unit soles.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Computerization in analysis and design, the machine is well in stability.

2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.

3. Conformed to human engineering in design,it features operational compatibility.

4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.

5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is clearly indicated.

8. It could be equipped with air blowing system and can produce light weight.

9. All new model,2 color machine only need one worker for operation.

10. Using different clamping force of 80T/100T/120T/150T/200T for different design and material, to achieve the best quality of product.
Specification of Sole making machine
Model: KT-6612L
Production: 400-660 Pcs/Hour
Work station: 12 Station
Clamping force: 80/100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Servo motor:22 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 59800*3500*2350 mm
Machine weight: 6800 kgs
Loading into a 20 feet container


Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 0
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 2

Left side


Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 4

Right side


Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 6

Front side


Sole sample
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 8

Man

1 Color Sole
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 10

Woman

2 Color Sole
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 12

Children

3 Color Sole
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 14
1 color PVC sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 16
2 color PVC sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 18
3 Color PVC sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 20
4 color PVC sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 22
2 color TPU sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 24
2 Color TPU sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 26
1 color TPU sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 28
1 color TPU sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 30
1 Color TPU sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 32
2 Station PVC sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 34
3 Station PVC sole making machine
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 36
4 Station PVC sole making machine
PVC Sole Making Machine Video

PRODUCT CONFIGURATION
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 38
PLC+Full-touch screen operation
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 40
Imported control valve
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 42
Power saving of servo system
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 44
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 46
Certificate
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 48
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 50
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 52
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 54
SALES AND SERVICE NETWORK
Rotary PVC Sole Injection Machine 380V / 220V TPU Injection Molding Machine European Standard 56
