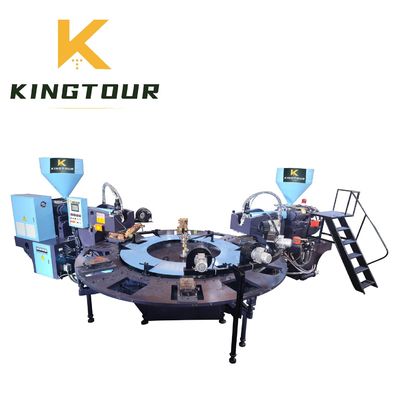

12 Station Shoe Sole Making Machine Two Color PVC TPR TPU Sole Injection Molding Machine

Large Image : 12 Station Shoe Sole Making Machine Two Color PVC TPR TPU Sole Injection Molding Machine Get Best Price

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Kingtour

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$36,000-45,000

Contact Now

Detailed Product Description

Name:	Shoe Sole Making Machine	Machinery Test Report:	Provided
Core Components:	PLC, Bearing, Gearbox, Motor, Pump	Production Capacity:	200-280 Pairs/hour
Voltage:	380V/220V 3 Phase	Power(w):	60500
Dimension(lwh):	625056502360mm	Warranty:	1.5 Years
Key Selling Points:	Easy To Operate	Weight (KG):	11000
Function:	To Make PVC Sole	Raw Material:	PVC
Required Labor:	2 Workers	Finished Products:	PVC Sole
Highlight:	12 Station Shoe Sole Making Machine , Two Color Sole Injection Molding Machine , TPU Sole Injection Molding Machine

Product Overview

KT-8162L European Standard 12 Station Rotary Two Color PVC TPR TPU Sole Injection Molding Machine

This machine can make various kinds of sole with PVC material. It only need 100 square meters and 2 workers, then you can start to make sole, it is very suitable for the new investors.

1. Computerization in analysis and design,the machine is well in stability.
2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese.
3. Conformed to human engineering in design,it features operational compatibility.
4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.
5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.
6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.
7. Specially designed, the oil pressure circuit board is simple in structure.
The function description of various switches is clearly indicated.
8. It could be equipped with air blowing system and can produce light weight,particularly the need for reinforced cooling
effect.
9. All new model,2 color machine only need one worker for operation.
10. Using different clamping force of 80T/100T/120T for different design and material,to achieve the best quality of product.

FEATURES AT A GLANCE

Model: KT-8612L
Production: 400-660 Pcs/Hour
Work station: 12 Station
Clamping force: 80/100/120/150/200 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:22 kw
Power consumption: 22-30 kw/h
Temperature control: 4 section
Machine dimension: 6200*5600*2350 mm
Machine weight: 11500 kgs
