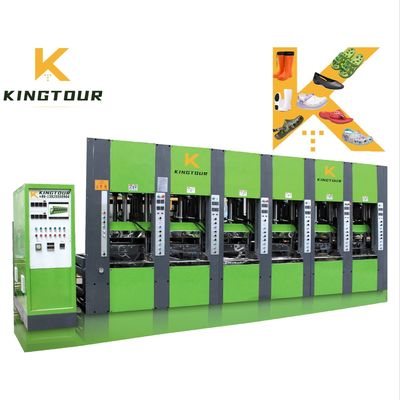

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686

Large Image :  6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 Get Best Price

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: KINGTOUR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $79,800-88,800
Packaging Details: Professional safety export package
Delivery Time: 5-35 Days
Payment Terms: TT,LC,DP
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Product Name: Footwear Injection Molding Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 320-420 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 121500 Dimension(l*w*h): 7960*4560*2860mm
Warranty: 1 Year Key Selling Points: Easy To Operate
Function: To Make EVA Slipper Raw Material: EVA
Model: KT-686 Required Labor: 1-2 Workers
Finished Products: EVA Slipper Showroom Location: None
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Condition: New Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Weight: 19500
Highlight:

6 Station Footwear Injection Molding Machine

,

Footwear Injection Molding Machine 121500W

,

121500W EVA Shoe Making Machine

Product Overview



KT-686 EVA Footwear Injection Molding Machine
This EVA machine can make various kinds of slipper, shoe, sole, rain boot with EVA material.
It only need 100 square meters and 2 workers, then you can start to make all kinds of footwear in EVA.
it is very suitable for the new investors.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The high clamping force for the production of every kind of EVA items and it enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Each mould-holder fits 2 moulds, Automatic compensation of the mould plates,Fast opening of mould-holders thanks to toggle system,350 mm opening stroke.

5. One station with one set mold,pressure, time of moulding,mould temperature and cooling time all controlled
independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Low operate platform,Operating height is ergonomic and comfortable .

9. It does not need water cooling circulation for mold station.

10. Automatic safety door and fence structure ensure the safety of personnel.
FEATURES AT A GLANCE
Specification of EVA slipper making machine
Model: KT-686
Production: 400-600 Pcs/Hour
Work station: 6 Station
Clamping force: 180 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 9.8 kw*2
Heating plate: 76.8 kw
Hydraulic system:51.9 kw
Total power: 150 kw/h
Temperature control: 4 section
Machine dimension: 8100*4600*3050 mm
Machine weight: 25800 kgs
Loading into a 40 feet container


6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 0
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 2

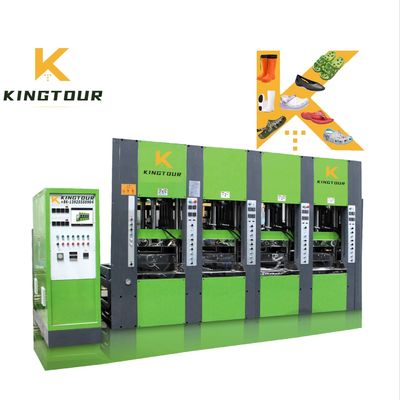

4 Station EVA Slipper Injection Machine
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 4

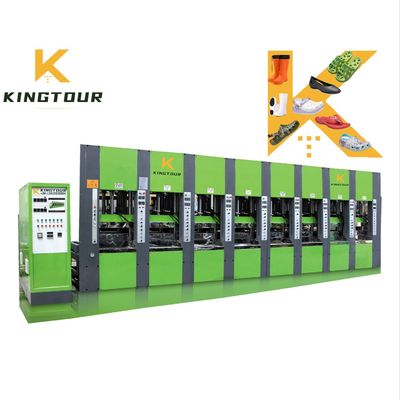

8 Station EVA Slipper Injection Machine

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 6

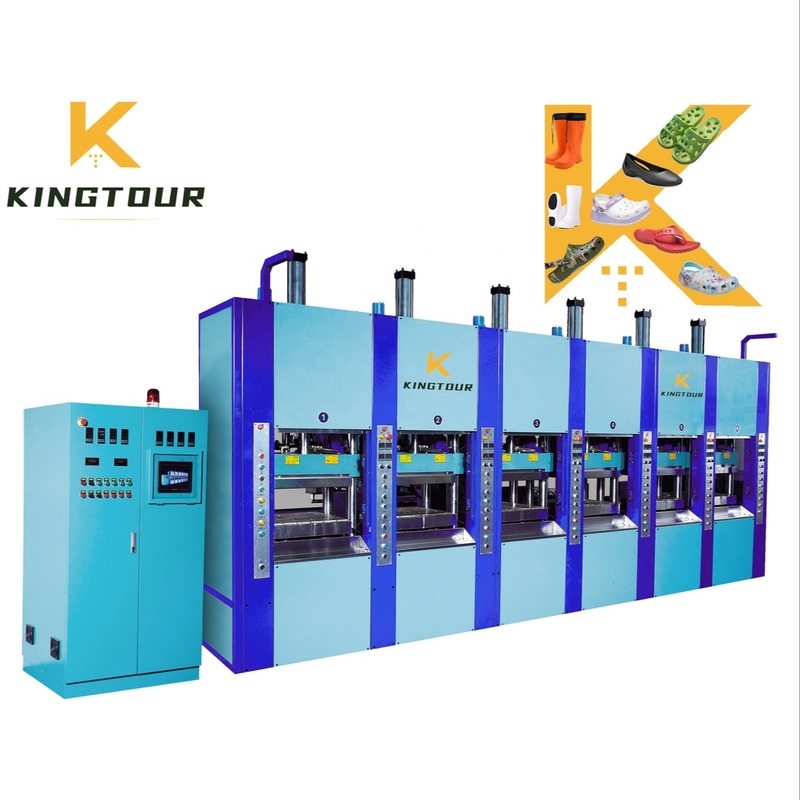

10 Station EVA Slipper Machine

Finished samples
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 8

Flip flop sample produced by our machine

You can send me your ideal design to us, we can customized the mold with your logo and other requirements.
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 10

Slipper sample produced by our machine

We have more than 10,000 designs in our sample room, please contact me for more designs.
Machine Video

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 12
PVC Slipper Making Machine
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 14
PVC Shoe Making Machine

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 16
Rain Boot Making Mahcine

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 18
Static 2 Station Sole Making Machine
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 20
Static 3 Station Sole Making Machine

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 22
Static 4 Station Sole Making Machine

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 24
1 Color Sole Making Machine
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 26
2 Color Sole Making Machine

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 28
3 Color Sole Making Machine

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 30
1 Color DIP Shoe Making Machine
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 32
2 Color DIP Shoe Making Machine

6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 34
PP Insole Making Machine

PRODUCT CONFIGURATION
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 36
PLC+Full-touch screen operation
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 38
Imported control valve
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 40
Power saving of servo system
CONTAINER LOADING
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 42
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 44
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 46
Certificate
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 48
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 50
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 52
SALES AND SERVICE NETWORK
6 Station Footwear Injection Molding Machine 121500W EVA Shoe Making Machine KT-686 54
