4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864

Large Image :  4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 Get Best Price

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: KINGTOUR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $53,900-65,900
Packaging Details: Professional safety export package
Delivery Time: 5-35 Days
Payment Terms: TT,LC,DP
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Product Name: EVA Shoe Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 320-420 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 130000 Dimension(l*w*h): 6100*4600*3050mm
Warranty: 1.5 Years Key Selling Points: Easy To Operate
Function: To Make EVA Product Raw Material: EVA
Required Labor: 1-2 Workers Finished Products: EVA Product
Showroom Location: None Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other Weight: 21800
Highlight:

4 Station EVA Shoe Machine

,

EVA Shoe Machine 130000W

,

130000W Shoe Sole Injection Moulding Machine

Product Overview

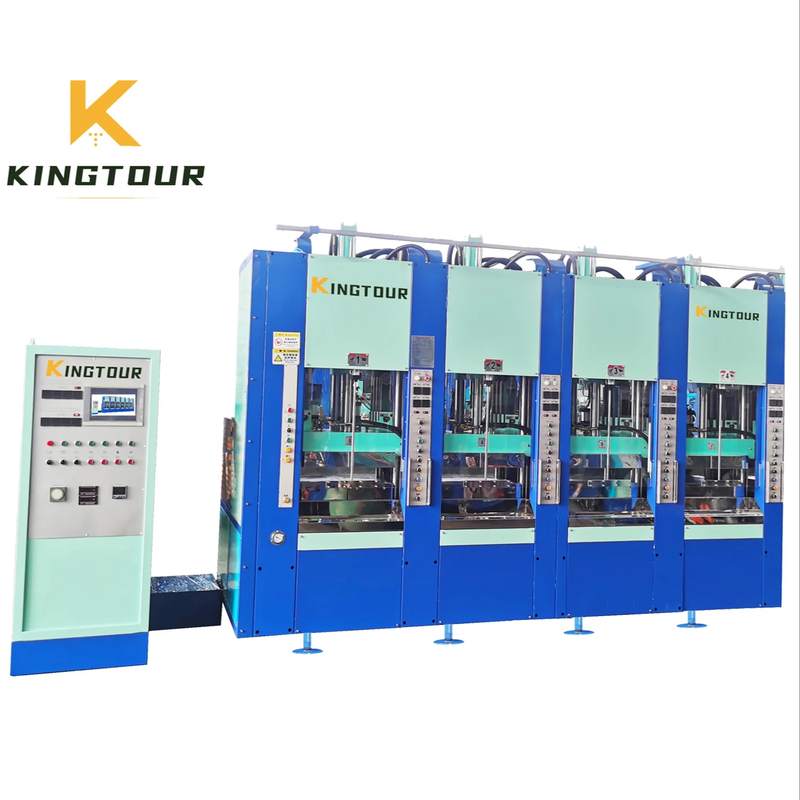

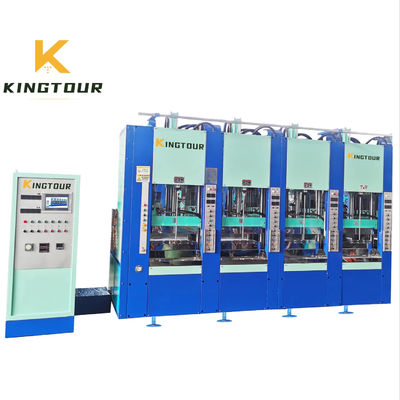

KT-6864 4 Station EVA Injection Molding Machine

This machine can make various kinds of slipper, shoe, sandal, boot and sole with EVA material.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The high clamping force for the production of every kind of EVA items and it enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Each mould-holder fits 2 moulds, Automatic compensation of the mould plates,Fast opening of mould-holders thanks to toggle system,350 mm opening stroke.

5. One station with one set mold,pressure, time of moulding,mould temperature and cooling time all controlled
independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Low operate platform,Operating height is ergonomic and comfortable .

9. It does not need water cooling circulation for mold station.

10. Automatic safety door and fence structure ensure the safety of personnel.
FEATURES AT A GLANCE
Specification of EVA slipper making machine
Model: KT-6864
Production: 300-400 Pcs/Hour
Work station: 4 Station
Clamping force: 180 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 9.8 kw*2
Heating plate: 44.5 kw
Hydraulic system:37 kw
Total power: 130 kw
Temperature control: 4 section
Machine dimension: 6100*4600*3050 mm
Machine weight: 21800 kgs
Loading into a 40 feet container


4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 0
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 2
Machine in our factory
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 4
Machine in customer's factory

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 6
Machine from back side

Finished samples
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 8

Flip flop sample produced by our machine

You can send me your ideal design to us, we can customized the mold with your logo and other requirements.
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 10

Slipper sample produced by our machine

We have more than 10,000 designs in our sample room, please contact me for more designs.
Machine Video

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 12
Slipper Making Machine
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 14
Rain Boot Making Machine

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 16
Plastic Shoe Making Machine

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 18
1 Color Sole Making Machine
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 20
2 Color Sole Making Machine

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 22
3 Color Sole Making Machine

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 24
Static 2 Station Sole Making Machine
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 26
Static 3 Station Sole Making Machine

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 28
Static 4 Station Sole Making Machine

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 30
1 Color DIP Shoe Making Machine
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 32
2 Color DIP Shoe Making Machine

4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 34
PP Insole Making Machine

PRODUCT CONFIGURATION
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 36
SIEMENS PLC CONTROL SYSTEM
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 38
Imported control valve
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 40
Power saving of servo system
CONTAINER LOADING
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 42
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 44
Certificate
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 46
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 48
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 50
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 52
SALES AND SERVICE NETWORK
4 Station EVA Shoe Machine 130000W Shoe Sole Injection Moulding Machine KT-6864 54
