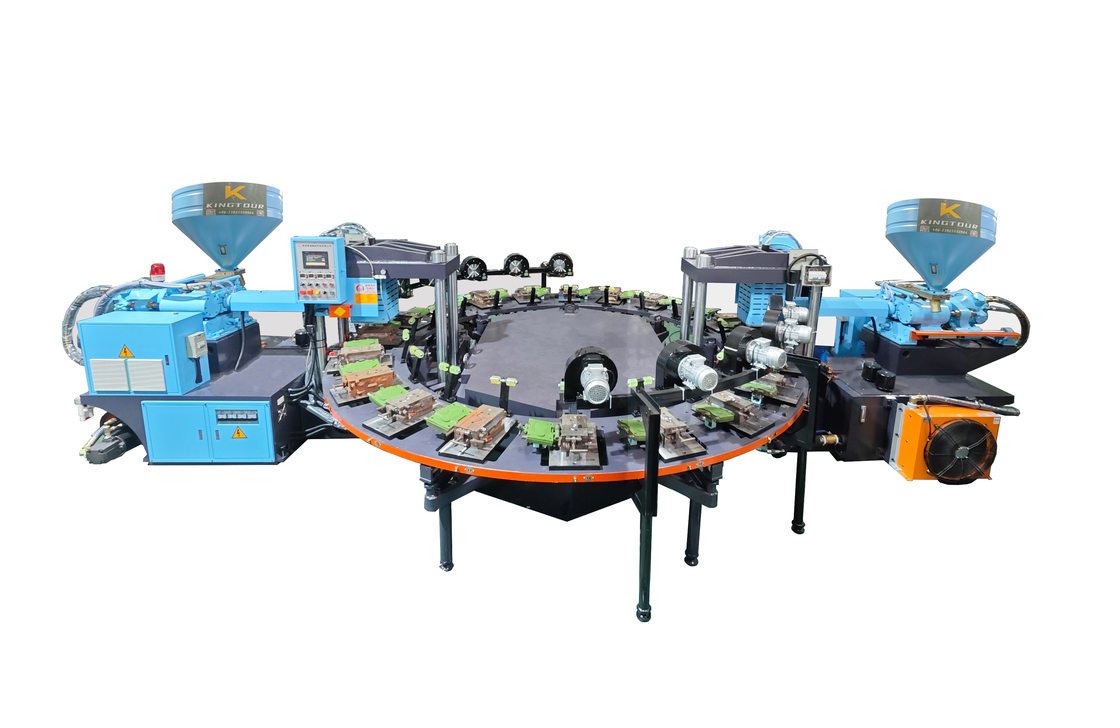

Rotary 2 Color PVC Sole Injection Molding Machine

Large Image : Rotary 2 Color PVC Sole Injection Molding Machine Get Best Price

Product Details:

Place of Origin:	GUANGDONG,CHINA
Brand Name:	KINGTOUR
Certification:	CE
Model Number:	KT-668 Pro

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 25000-58000
Packaging Details:	Professional safety export package
Delivery Time:	5-35 Days
Payment Terms:	L/C,T/T,D/A,D/P,Western Union,
Supply Ability:	100 Sets Per Month

Contact Now

Detailed Product Description

Name:	Shoe Sole Making Machine	Production Capacity:	300-400 Pcs/Hour
Worker's Need:	1-3 Workers	Factory Space:	100 Square Meters
Function:	Making Shoe Sole	Weight:	12000 Kgs
Power Need:	50 Kw
Highlight:	PVC sole injection molding machine , 2 color shoe sole machine , rotary shoe sole making machine

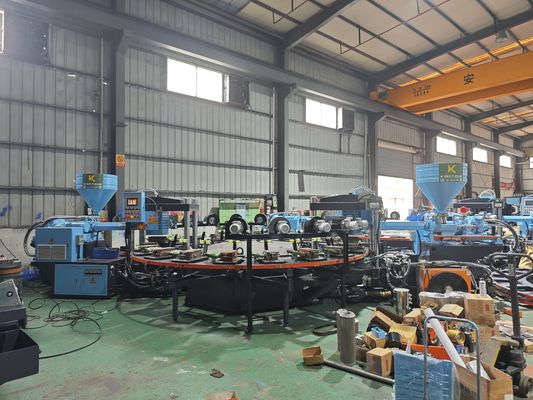

Rotary 2 Color PVC Sole Injection Molding Machine

Specialized in the production of shoe soles using compact and expanded thermoplastic materials such as PVC, TPR, TR and TPU.

Special Features of KT-668 Pro

Intelligent Control System

PLC + Touchscreen with 5-language interface, smartphone-like operation
4-section precise temperature control
Ceramic band heater maintains stable temperature
Auto-alarm system for pressure/temperature anomalies

Efficient Production Design

Multi-Station Rotary Table enables simultaneous injection/cooling/ejection
30% faster mold change compared to conventional machines
Air Blow System reduces product weight by 15-20%

Specifications

English	Español	Unit	Value
Model	Modelo	Unidad	KT-816 Pro
Production	Produccion	Pcs/h	300-500
Work station	Numero de estaciones		20
Clamping force	Fuerza de Abrazadera	TON	150
Opening stroke	Carrera de apertura	MM	220
Mold dimension	Dimension del molde	MM	290390200
Injector	Inyector	SET	2
Screw diameter	Diametro de tornillo	MM	65,60
Max. Injection Volume	Volumen maximo de inyeccion	Cm3	800,700
Screw L/D ratio	Relacion de tornillo L/D	L/D	21:1
Screw rotation speed	Velocidad de rotacion de Tornillo	R.P.M	0-200
Heating power of injector	Energia de la calefaccion del inyector	KW	7*2
Motor	Motor	KW	22*2
Total power	Consumo electrico total	KW	58
Total power consumption with servo motor	Consumo total de energia con servo motor	KW	20-30
Temperature control	Control de la temperatura	Section	4*2
Machine dimension	Dimension de maquina	LWH	800042402350
Machine weight	Peso de maquina	KGS	11000
