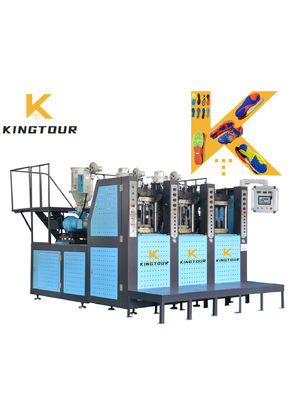

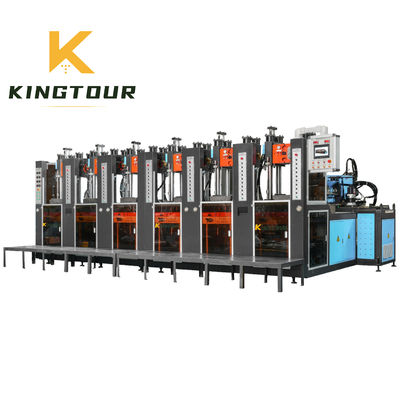

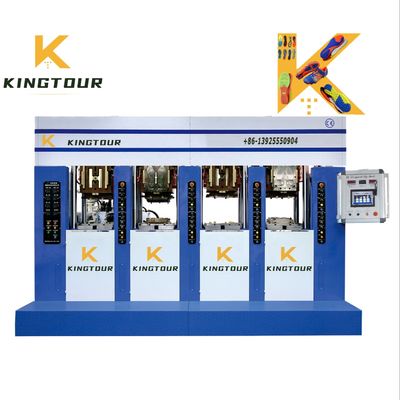

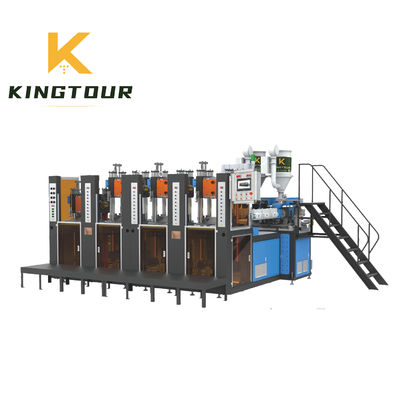

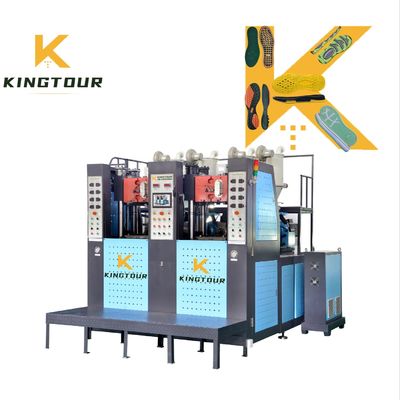

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole

Large Image :  Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole Get Best Price

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: KINGTOUR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $50,000-93,000
Packaging Details: Professional safety export package
Delivery Time: 5-35 Days
Payment Terms: TT,LC,DP
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Product Name: Static Injection Molding Machines Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 200-280 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 50500 Dimension(l*w*h): 6650*3850*2850mm
Warranty: 1.5 Years Key Selling Points: Easy To Operate
Weight (KG): 18000 Function: To Make PVC Sole
Raw Material: PVC Required Labor: 2 Workers
Finished Products: PVC Sole
Highlight:

Static Injection Molding Machines

,

6 Station Shoe Sole Molding Machine

,

6 Station Injection Molding Machines

Product Overview



KT-8686 6 Station Static injection molding machine for making PVC TPU TPR shoe sole

Product: Specialized in the production of soles and soles with inserts.
Applicable material: Compact and expanded thermoplastic material, such as PVC TR TPR and TPU.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The 220 tons clamping force enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Injectors with specific screws(nanoscale processing) having profiles designed for different material types.

5. One station with one set mold ,pressure, time of moulding, mould temperature and cooling time all controlled independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to35%-50%.

8. Multi-station machine but less workers need.

9. Extreme production flexibility in the colors, materials and programming.

10. Automatic safety door and fence structure ensure the safety of personnel.Product: Specialized in the production of soles and soles with inserts.

FEATURES AT A GLANCE
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 0
Specification of sole making machine
Model: KT-8683
Production: 200-400 Pcs/Hour
Work station: 3 Station
Clamping force: 80/100/120/150/220 Ton
Screw diameter: 65 mm*2
Max. Injection volume: 650-1000 cm3
Heating power: 6*2 kw
Motor: 15kw*2
Power consumption: 15-20 kw/h
Temperature control: 4 *2 section
Machine dimension: 4650*3800*2700 mm
Machine weight: 15000 kgs
Loading into a 40 feet HQ

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 2
2 Station 2 color PVC sole machine
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 4
3 Station 2 color TPU sole machine
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 6
4 Station PVC sole making machine
Sole sample
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 8

Man


Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 10

Woman


Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 12

Children


Machine Video

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 14
1 color sole making machine
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 16
2 color sole making machine

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 18
3 color sole making machine

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 20
4 station EVA sole making machine
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 22
6 station EVA sole making machine

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 24
8 station EVA sole making machine

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 26
PVC slipper making machine
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 28
PVC shoe making machine

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 30
Rain boot making machine

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 32
1 color DIP shoe making machine
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 34
2 color DIP shoe making machine

Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 36
PP insole making machine

PRODUCT CONFIGURATION
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 38
PLC+Full-touch screen operation
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 40
Imported control valve
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 42
Power saving of servo system
CONTAINER LOADING
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 44
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 46
Certificate
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 48
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 50
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 52
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 54
SALES AND SERVICE NETWORK
Static Injection Molding Machines 6 Station Shoe Sole Molding Machine For Making PVC TPU TPR Shoe Sole 56
