380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine

All Products
Shoe Making Machine (6)
Gumboots Making Machine (9)
Shoe Injection Machine (6)
Slipper Making Machine (19)
Blowing Slipper Machine (6)
EVA Shoes Injection Machine (9)
EVA Shoe Making Machine (7)
Plastic Shoe Making Machine (6)
Sports Shoe Making Machine (6)
PVC Shoe Making Machine (6)
Rubber Sole Making Machine (7)
Shoe Sole Making Machine (34)
Plastic Shoe Mold (7)
Sandals Making Machine (6)
I'm Online Chat Now
Certification
China Dongguan Kingtour Technology Co., Ltd. certification

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine

Large Image :  380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine Get Best Price

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: KINGTOUR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $69,900-79,900
Packaging Details: Professional safety export package
Delivery Time: 5-35 Days
Payment Terms: TT,LC,DP
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Name: Rubber Sole Making Machine Video Outgoing-inspection: Provided
Machinery Test Report: Provided Core Components: PLC, Bearing, Gearbox, Motor, Pump
Production Capacity: 100-150 Pairs/hour Voltage: 380V/220V 3 Phase
Power(w): 79000 Dimension(l*w*h): 6400*3432*2200mm
Key Selling Points: Easy To Operate Weight (KG): 12000
Function: To Make Rubber Sole Raw Material: Rubber
Required Labor: 1 Worker Only Finished Products: Rubber Sole
Highlight:

380V Rubber Sole Making Machine

,

220V Rubber Sole Making Machine

,

79000W Shoe Injection Molding Machine

Product Overview

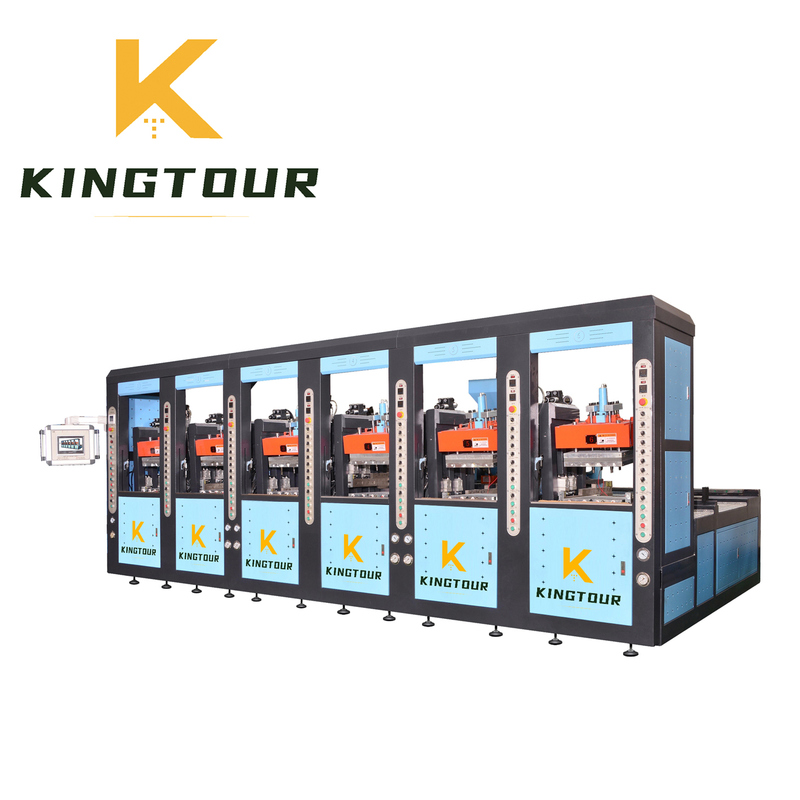

KT-8586 6 Station Rubber Injection Molding Machine for Making Rubber Sole and Shoe

Product: Specialized in the production of soles and soles with inserts.
Applicable material: Rubber.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The 200 tons clamping force enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Injectors with specific screws(nanoscale processing) having profiles designed for different material types.

5. One station with one set mold ,pressure, time of moulding, mould temperature and cooling time all controlled independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Multi-station machine but less workers need.

9. Extreme production flexibility in the colors, materials and programming.

10. Automatic safety door and fence structure ensure the safety of personnel.

FEATURES AT A GLANCE
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 0
Model: KT-8586
Production: 100-150 Pairs/Hour
Work station: 6 Station
Clamping force: 200 Ton
Screw diameter: 60,65,70 mm
Max. Injection volume: 650-1000 cm3
Heating power: 36+6 kw
Motor: 22+15kw
Power consumption: 25-30 kw/h
Temperature control: 4 section
Machine dimension: 6400*3432*2200 mm
Machine weight: 21000 kgs
Loading into a 40 feet HQ

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 2

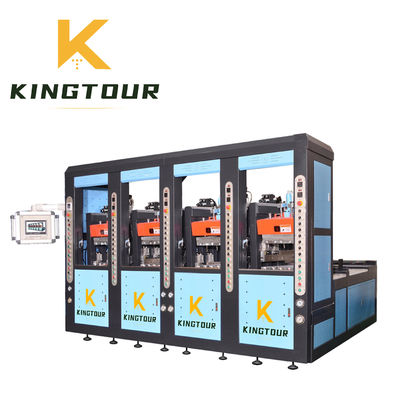

2 Station Rubber sole machine
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 4
3 Station Rubber sole machine
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 6
4 Station Rubber sole making machine
Sole sample
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 8

Man


380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 10

Woman


380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 12

Children


Machine Video

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 14
1 color sole making machine
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 16
2 color sole making machine

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 18
3 color sole making machine

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 20
4 station EVA sole making machine
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 22
6 station EVA sole making machine

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 24
8 station EVA sole making machine

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 26
PVC slipper making machine
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 28
PVC shoe making machine

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 30
Rain boot making machine

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 32
1 color DIP shoe making machine
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 34
2 color DIP shoe making machine

380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 36
PP insole making machine

PRODUCT CONFIGURATION
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 38
PLC+Full-touch screen operation
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 40
Imported control valve
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 42
Power saving of servo system
CONTAINER LOADING
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 44
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 46
Certificate
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 48
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 50
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 52
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 54
SALES AND SERVICE NETWORK
380V / 220V Rubber Sole Making Machine 79000W Shoe Injection Molding Machine 56
