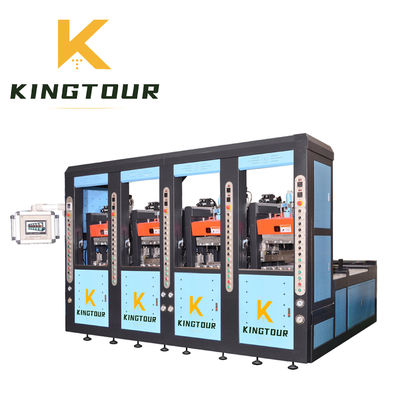

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584

Large Image :  Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 Get Best Price

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: KINGTOUR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $50,000-93,000
Packaging Details: Professional safety export package
Delivery Time: 5-35 Days
Payment Terms: TT,LC,DP
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Name: Sole Injection Molding Machine Machinery Test Report: Provided
Core Components: PLC, Bearing, Gearbox, Motor, Pump Production Capacity: 90-120 Pairs/hour
Voltage: 380V/220V 3 Phase Power(w): 67000
Dimension(l*w*h): 4790*3432*2200mm Warranty: 1.5 Years
Key Selling Points: Easy To Operate Weight (KG): 8800
Function: To Make Rubber Sole Raw Material: Rubber
Required Labor: 1 Worker Only Finished Products: Rubber Sole
Highlight:

Rubber Sole Injection Molding Machine

,

4 Station Sole Moulding Machine

,

Sole Moulding Machine 380V

Product Overview



KT-8584 4 Station Rubber Sole Injection Molding Machine

Product: Specialized in the production of soles and soles with inserts.
Applicable material: Rubber.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The 200 tons clamping force enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Injectors with specific screws(nanoscale processing) having profiles designed for different material types.

5. One station with one set mold ,pressure, time of moulding, mould temperature and cooling time all controlled independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Multi-station machine but less workers need.

9. Extreme production flexibility in the colors, materials and programming.

10. Automatic safety door and fence structure ensure the safety of personnel.

FEATURES AT A GLANCE
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 0
Model: KT-8584
Production: 70-120 Pairs/Hour
Work station: 6 Station
Clamping force: 200 Ton
Screw diameter: 60,65,70 mm
Max. Injection volume: 650-1000 cm3
Heating power: 24+6 kw
Motor: 22+15kw
Power consumption: 25-30 kw/h
Temperature control: 4 section
Machine dimension: 4790*3432*2200 mm
Machine weight: 14500 kgs
Loading into a 40 feet HQ

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 2
2 Station Rubber sole machine
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 4
3 Station Rubber sole machine
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 6
6 Station Rubber sole making machine
Sole sample
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 8

Man


Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 10

Woman


Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 12

Children


Machine Video

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 14
1 color sole making machine
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 16
2 color sole making machine

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 18
3 color sole making machine

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 20
4 station EVA sole making machine
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 22
6 station EVA sole making machine

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 24
8 station EVA sole making machine

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 26
PVC slipper making machine
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 28
PVC shoe making machine

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 30
Rain boot making machine

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 32
1 color DIP shoe making machine
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 34
2 color DIP shoe making machine

Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 36
PP insole making machine

PRODUCT CONFIGURATION
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 38
PLC+Full-touch screen operation
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 40
Imported control valve
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 42
Power saving of servo system
CONTAINER LOADING
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 44
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 46
Certificate
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 48
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 50
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 52
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 54
SALES AND SERVICE NETWORK
Rubber Sole Injection Molding Machine 4 Station Sole Moulding Machine 380V / 220V KT-8584 56
