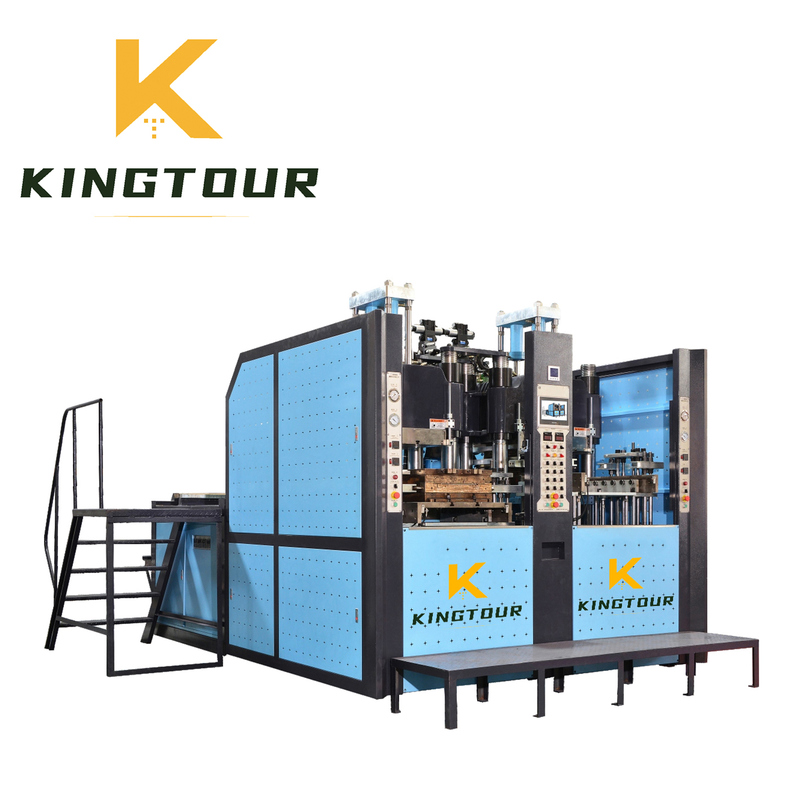

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582

All Products
Shoe Making Machine (6)
Gumboots Making Machine (9)
Shoe Injection Machine (6)
Slipper Making Machine (19)
Blowing Slipper Machine (6)
EVA Shoes Injection Machine (9)
EVA Shoe Making Machine (7)
Plastic Shoe Making Machine (6)
Sports Shoe Making Machine (6)
PVC Shoe Making Machine (6)
Rubber Sole Making Machine (7)
Shoe Sole Making Machine (34)
Plastic Shoe Mold (7)
Sandals Making Machine (6)
I'm Online Chat Now
Certification
China Dongguan Kingtour Technology Co., Ltd. certification

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582

Large Image :  2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 Get Best Price

Product Details:
Place of Origin: GUANGDONG,CHINA
Brand Name: KINGTOUR
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $50,000-93,000
Packaging Details: Professional safety export package
Delivery Time: 5-35 Days
Payment Terms: TT,LC,DP
Supply Ability: 100 Set Per Month
Contact Now
Detailed Product Description
Name: Rubber Sole Making Machine Video Outgoing-inspection: Provided
Core Components: PLC, Bearing, Gearbox, Motor, Pump Production Capacity: 50-80 Pairs/hour
Voltage: 380V/220V 3 Phase Power(w): 56000
Dimension(l*w*h): 2530*3432*2200mm Warranty: 1.5 Years
Key Selling Points: Easy To Operate Weight (KG): 9800
Function: To Make Rubber Sole Raw Material: Rubber
Required Labor: 1 Worker Only Finished Products: Rubber Sole
Highlight:

2 Station Rubber Sole Making Machine

,

Rubber Sole Making Machine 380V

,

220V Sole Molding Machine

Product Overview



KT-8582 2 Station Rubber Sole Injection Molding Machine

Product: Specialized in the production of soles and soles with inserts.
Applicable material: Rubber.

1. Intelligent electrical system for man-machine interface controlled by SIEMENS PLC system, Mitsubishi frequency conversion control element.

2.The 200 tons clamping force enhances the machine’s potential performances, thus achieving the optimum configuration to respond effectively, flexibly and speedily to the latest market demands.

3. Hydraulic management controlled by permanent magnet brushless motors (SERVO-MOTORS) which, in addition to energy saving, completely eliminates the annoying noise normally generated by conventional hydraulics.

4. Injectors with specific screws(nanoscale processing) having profiles designed for different material types.

5. One station with one set mold ,pressure, time of moulding, mould temperature and cooling time all controlled independently, which can make the outsole perfect.Finished product ratio can up to 98%.

6. Automatic system for open and close mold will reduce labor intensity a lot.

7. Machine designed for excellent energy saving (optional) with the same high performance levelGuaranteed energy savings up to 35%-50%.

8. Multi-station machine but less workers need.

9. Extreme production flexibility in the colors, materials and programming.

10. Automatic safety door and fence structure ensure the safety of personnel.

FEATURES AT A GLANCE
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 0
Model: KT-8582
Production: 50-80 Pairs/Hour
Work station: 2 Station
Clamping force: 200 Ton
Screw diameter: 60,65,70 mm
Max. Injection volume: 650-1000 cm3
Heating power: 12+6 kw
Motor: 22+15kw
Power consumption: 15-20 kw/h
Temperature control: 4 section
Machine dimension: 2530*3432*2200 mm
Machine weight: 9500 kgs
Loading into a 40 feet HQ

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 2
6 Station Rubber sole machine
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 4
3 Station Rubber sole machine
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 6
4 Station Rubber sole making machine
Sole sample
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 8

Man


2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 10

Woman


2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 12

Children


Machine Video

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 14
1 color sole making machine
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 16
2 color sole making machine

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 18
3 color sole making machine

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 20
4 station EVA sole making machine
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 22
6 station EVA sole making machine

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 24
8 station EVA sole making machine

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 26
PVC slipper making machine
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 28
PVC shoe making machine

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 30
Rain boot making machine

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 32
1 color DIP shoe making machine
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 34
2 color DIP shoe making machine

2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 36
PP insole making machine

PRODUCT CONFIGURATION
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 38
PLC+Full-touch screen operation
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 40
Imported control valve
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 42
Power saving of servo system
CONTAINER LOADING
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 44
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 46
Certificate
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 48
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 50
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 52
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 54
SALES AND SERVICE NETWORK
2 Station Rubber Sole Making Machine 380V / 220V Sole Molding Machine KT-8582 56
