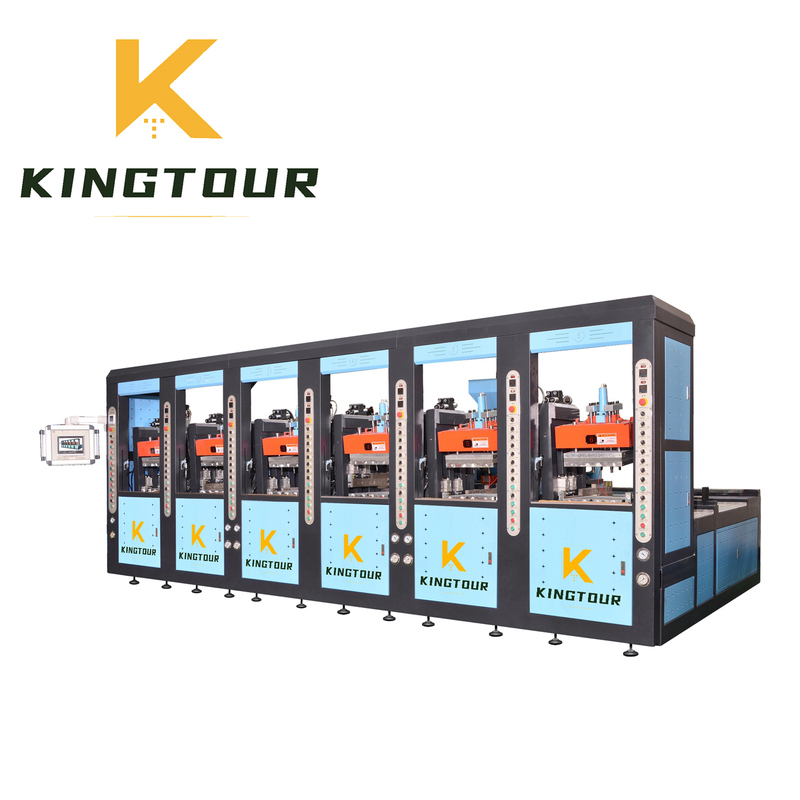

Automatic Rubber Sole Making Machine 6 Station Shoe Sole Moulding Machine 61 Kw
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Production Capacity: | 200-300 Pcs/Hour | Worker's Need: | 1-3 Workers |
|---|---|---|---|
| Factory Space: | 100 Square Meters | Function: | Making Rubber Shoe Sole |
| Weight: | 12000 Kgs | Power Need: | 61 Kw |
| Highlight: | Automatic Rubber Sole Making Machine,6 Station Shoe Sole Moulding Machine,Shoe Sole Moulding Machine 61 Kw |
||
Automatic 6 Station Rubber Machine For Making Rubber Shoe Sole
Specialized in the production of rubber shoe soles and related rubber products, this rubber sole injection molding machine delivers precision and efficiency for industrial manufacturing.
Special Features of KT-8586
Intelligent Control System
- PLC + Touchscreen with 5-language interface, smartphone-like operation
- 6-station precise temperature control
- Ceramic band heater maintains stable temperature
- Auto-alarm system for pressure/temperature anomalies
Efficient Production Design
- 30% faster mold change compared to conventional machines
Specifications
| English | Español | Unit | Value |
|---|---|---|---|
| Model | Modelo | Unidad | KT-8586 |
| Production | Produccion | Pcs/h | 100-200 |
| Work station | Numero de estaciones | 6 | |
| Clamping force | Fuerza de Abrazadera | TON | 200 |
| Opening stroke | Carrera de apertura | MM | 220 |
| Mold dimension | Dimension del molde | MM | 500*320*300 |
| Injector | Inyector | SET | 2 |
| Screw diameter | Diametro de tornillo | MM | 70,75 |
| Max. Injection Volume | Volumen maximo de inyeccion | Cm3 | 800 |
| Screw L/D ratio | Relacion de tornillo L/D | L/D | 21:1 |
| Screw rotation speed | Velocidad de rotacion de Tornillo | R.P.M | 0-200 |
| Heating power of injector | Energia de la calefaccion del inyector | KW | 18+6 |
| Motor | Motor | KW | 22+15 |
| Total power | Consumo electrico total | KW | 61 |
| Total power consumption with servo motor | Consumo total de energia con servo motor | KW | 30-40 |
| Temperature control | Control de la temperatura | Section | 4 |
| Machine dimension | Dimension de maquina | L*W*H | 6190*3800*2350 |
| Machine weight | Peso de maquina | KGS | 18000 |
Note: Above data only for reference.
