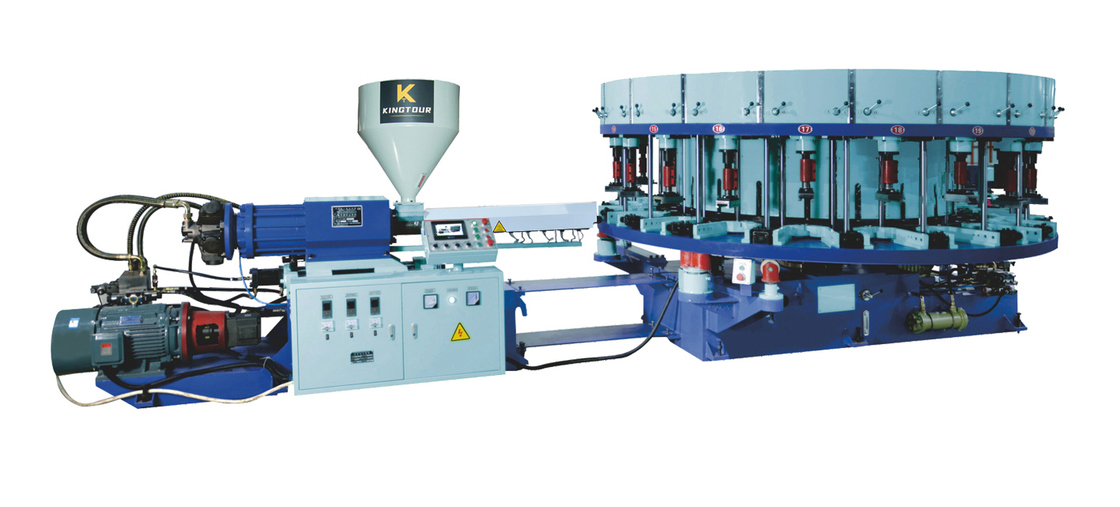

Direct Injection Sports Shoe Making Machine PVC TPR Footwear Manufacturing Machine
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Sports Shoe Making Machine | Raw Material: | PVC TPR |
|---|---|---|---|
| Labors: | 1-2 Workers | Space: | 100 Square Meter |
| Production: | 300-400 Pcs/Hour | Installation: | Engineer Install Machine In Your Factory |
| Usage: | Making Sports Shoes | ||
| Highlight: | Direct Injection Sports Shoe Making Machine,PVC Footwear Manufacturing Machine,TPR Footwear Manufacturing Machine |
||
Direct Injection Sports Shoe Making Machine DIP Sports Shoe
Special Features of KT-678
- Specialized in the production of DIP shoes
- Works with compact and expanded thermoplastic materials including PVC and TPR
- Computerized analysis and design ensures machine stability
- PLC automatic control system with touch screen operation
- Multilingual interface (English, Spanish, Portuguese, Vietnamese)
- Ergonomic design for operational compatibility
- Optional station configurations for small batch or mass production
- Optimized oil circuit reduces waiting time and increases productivity
- Multi-station mechanism allows simultaneous mold operation
- Simplified oil pressure circuit board with clear switch labeling
- Optional air blowing system for lightweight production
- New model requires only one operator for two-color production
Technical Specifications
| English | Español | Unit | KT-678 |
|---|---|---|---|
| Model | Modelo | Unidad | KT-678 |
| Production | Producción | Pairs/h | 220-300 |
| Work station | Número de estaciones | 20 | |
| Shoe last trip | MM | 60 | |
| Shoe last height | MM | 210-260 | |
| Mold dimension | Dimensión del molde | MM | 340×180×60 |
| Injector | Inyector | SET | 1 |
| Screw diameter | Diámetro de tornillo | MM | 75 |
| Max. Injection Volume | Volumen máximo de inyección | Cm3 | 750 |
| Screw L/D ratio | Relación de tornillo L/D | L/D | 21:1 |
| Screw rotation speed | Velocidad de rotación de Tornillo | R.P.M | 0-200 |
| Heating power of injector | Energía de la calefacción del inyector | KW | 9 |
| Motor | Motor | KW | 15 |
| Total power | Consumo eléctrico total | KW | 24 |
| Total power consumption with servo motor | Consumo total de energía con servo motor | KW | 12-15 |
| Temperature control | Control de la temperatura | Section | 4 |
| Machine dimension | Dimensión de maquina | L*W*H | 6200×3800×2350 |
| Machine weight | Peso de máquina | KGS | 9100 |
Note: Above data only for reference.
Sports Shoe Made by Our Sports Shoe Making Machine
Exhibitions and Container Loading
