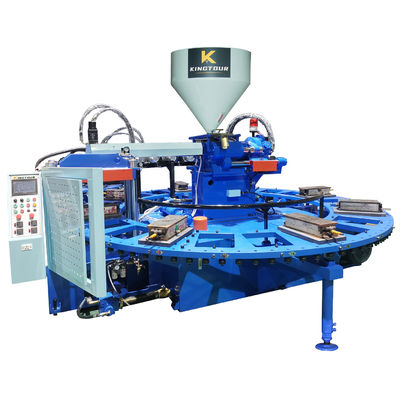

One Color Footwear Making Machines 24 Stations Sole Injection Molding Machine With PVC And Plastic
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Footwear Making Machines | Production Capacity: | 300-400 Pcs/Hour |
|---|---|---|---|
| Worker's Need: | 1-3 Workers | Factory Space: | 100 Square Meters |
| Function: | Making Shoes | Weight: | 6000 Kgs |
| Power Need: | 25 Kw | ||
| Highlight: | One Color Footwear Making Machines,24 Stations Sole Injection Molding Machine,24 Stations Footwear Making Machines |
||
24 Stations One Color Shoe Making Machine with PVC Plastic Material
Product Overview
Specialized in the production of plastic slippers, sandals, shoes, flip flops, and soles using compact and expanded thermoplastic materials such as PVC, PCU, and TPR.
Special Features of KT-618 Pro
Intelligent Control System
- PLC + Touchscreen with 5-language interface, smartphone-like operation
- 4-section precise temperature control
- Ceramic band heater maintains stable temperature
- Auto-alarm system for pressure/temperature anomalies
Efficient Production Design
- Multi-Station Rotary Table enables simultaneous injection/cooling/ejection
- 30% faster mold change compared to conventional machines
- Air Blow System reduces product weight by 15-20%
Specifications
| English | Español | Unit | Value |
|---|---|---|---|
| Model | Modelo | Unidad | KT-618 Pro |
| Production | Producción | Pcs/h | 300-500 |
| Work station | Número de estaciones | 24 | |
| Clamping force | Fuerza de Abrazadera | TON | 100 |
| Opening stroke | Carrera de apertura | MM | 220 |
| Mold dimension | Dimensión del molde | MM | 500*320*300 |
| Injector | Inyector | SET | 1 |
| Screw diameter | Diámetro de tornillo | MM | 70 |
| Max. Injection Volume | Volumen máximo de inyección | Cm3 | 800 |
| Screw L/D ratio | Relación de tornillo L/D | L/D | 21:1 |
| Screw rotation speed | Velocidad de rotación de Tornillo | R.P.M | 0-200 |
| Heating power of injector | Energía de la calefacción del inyector | KW | 7 |
| Motor | Motor | KW | 18.5 |
| Total power | Consumo eléctrico total | KW | 25.5 |
| Total power consumption with servo motor | Consumo total de energía con servo motor | KW | 12-15 |
| Temperature control | Control de la temperatura | Section | 4 |
| Machine dimension | Dimensión de maquina | L*W*H | 4990*3800*2350 |
| Machine weight | Peso de máquina | KGS | 5900 |
Note: Above data only for reference.
Shoes Made by Our Shoe Making Machine
