One Mold One Pair PVC Slipper And Shoe Sole Making Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Shoe Sole Making Machine | Production Capacity: | 300-400 Pcs/Hour |
|---|---|---|---|
| Worker's Need: | 1-3 Workers | Factory Space: | 100 Square Meters |
| Function: | Making Shoe Sole | Weight: | 12000 Kgs |
| Power Need: | 50 Kw | ||
| Highlight: | PVC slipper sole making machine,shoe sole making machine with mold,one pair shoe sole machine |
||

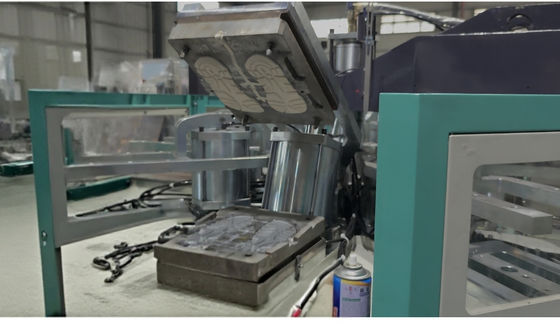

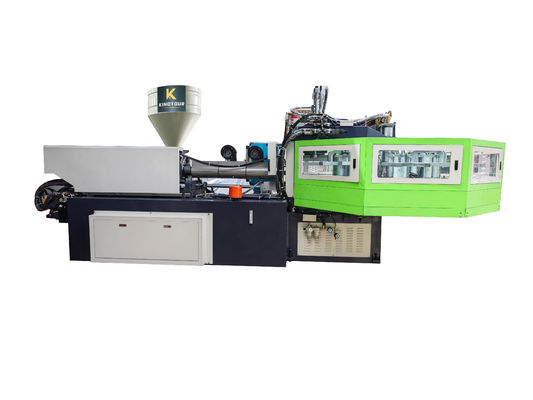

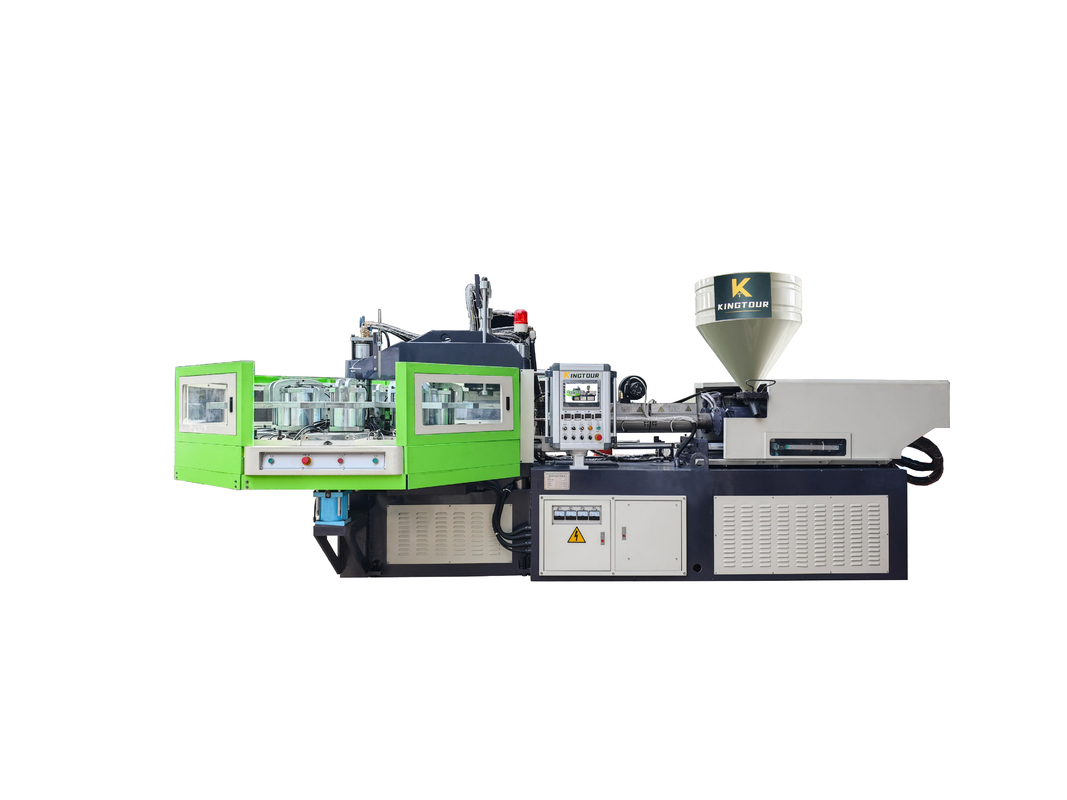

One Mold One Pair PVC Slipper And Shoe Sole Making Machine
Specialized in the production of shoe soles using compact and expanded thermoplastic materials such as PVC, TPR, TR and TPR.
Special Features of KT-668 Pro
Intelligent Control System
- PLC + Touchscreen with 5-language interface, smartphone-like operation
- 4-section precise temperature control
- Ceramic band heater maintains stable temperature
- Auto-alarm system for pressure/temperature anomalies
Efficient Production Design
- Multi-Station Rotary Table enables simultaneous injection/cooling/ejection
- 30% faster mold change compared to conventional machines
- Air Blow System reduces product weight by 15-20%
Specifications
| English | Español | Unit | Value |
|---|---|---|---|
| Model | Modelo | Unidad | KT-668 Pro |
| Production | Produccion | Pcs/h | 300-500 |
| Work station | Numero de estaciones | 8 | |
| Clamping force | Fuerza de Abrazadera | TON | 150 |
| Opening stroke | Carrera de apertura | MM | 220 |
| Mold dimension | Dimension del molde | MM | 290*390*200 |
| Injector | Inyector | SET | 1 |
| Screw diameter | Diametro de tornillo | MM | 70 |
| Max. Injection Volume | Volumen maximo de inyeccion | Cm3 | 923 |
| Screw L/D ratio | Relacion de tornillo L/D | L/D | 21:1 |
| Screw rotation speed | Velocidad de rotacion de Tornillo | R.P.M | 0-200 |
| Heating power of injector | Energia de la calefaccion del inyector | KW | 10 |
| Motor | Motor | KW | 22 |
| Total power | Consumo electrico total | KW | 32 |
| Total power consumption with servo motor | Consumo total de energia con servo motor | KW | 10-20 |
| Temperature control | Control de la temperatura | Section | 4*2 |
| Machine dimension | Dimension de maquina | L*W*H | 6000*2240*2350 |
| Machine weight | Peso de maquina | KGS | 8000 |
Note: Above data only for reference.

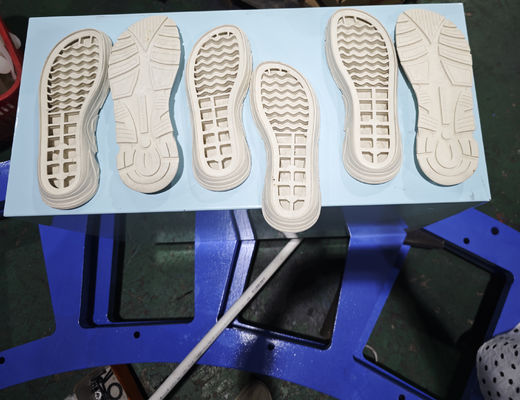

Shoes Made by Our Shoe Making Machine
